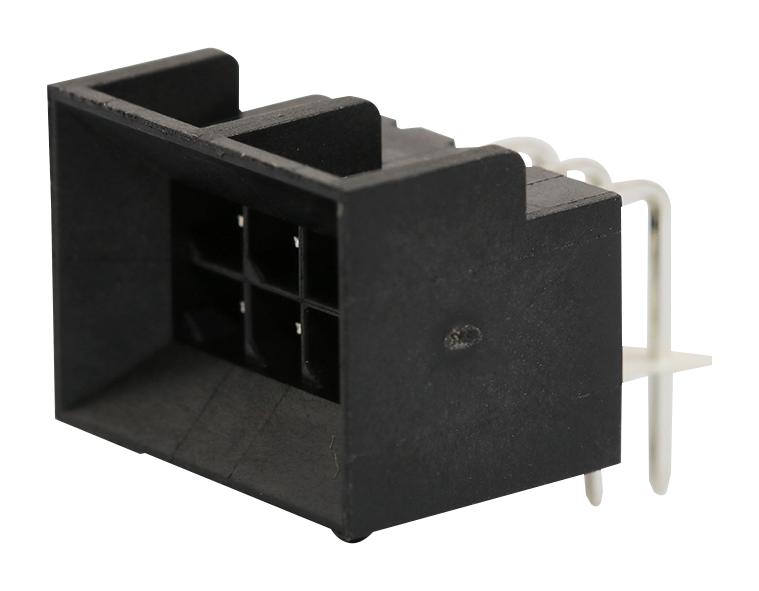

MOLEX 444280601 Micro-Fit Connector
This Micro-Fit 3.0 connector system features a dual row, surface-mount compatible, right-angle BMI header with snap-in PCB lock, 6 circuits, and tin plating. It is suitable for board-to-board, power, and wire-to-board applications, operating within a temperature range of -40°C to +105°C. It is CSA and UL certified, with a maximum current of 8.5A per contact and voltage rating up to 600V. Made from high-temperature thermoplastic, with durable brass contacts and tin plating, ensuring reliable performance over multiple mating cycles. Compatible with related Micro-Fit series parts for versatile wiring and connector solutions.
MOLEX 444280601 Micro-Fit Connector Specifications:
- Number of Circuits: 6
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- PC Tail Length: 3.50mm
- PCB Thickness - Recommended: 1.60mm
- Contact Orientation: Right Angle
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Surface Mount Compatibility: Yes
- Packaging Type: Tray
- Plating min - Mating: 5.080um
- Plating min - Termination: 5.080um
- Certification: CSA, UL
- Temp Max Process: 260°C for max 5 seconds
Buy the Molex Series Micro-Fit Connector: 444280601
Order the Molex Micro-Fit Connector 444280601 online today and benefit from a reliable, high-performance connector rated for 8.5A and 600V. Its compact right-angle, surface-mount design with 6 circuits makes it ideal for various wiring applications including power, board-to-board, and wire-to-board connections. Constructed from durable materials like brass and tin plating, it is CSA and UL certified, ensuring safety and quality. Easy to install and compatible with related Micro-Fit series components, this connector guarantees long-lasting performance in demanding environments.
Buy Molex 444280601 now and experience unmatched reliability and performance with a high-temperature, dual-row connector perfect for power and wiring needs.
Frequently Asked Questions
Where can I buy MOLEX 444280601?
You can click on the BUY or RFQ button to purchase 444280601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444280601?
You can download the 444280601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444280601?
MOLEX
