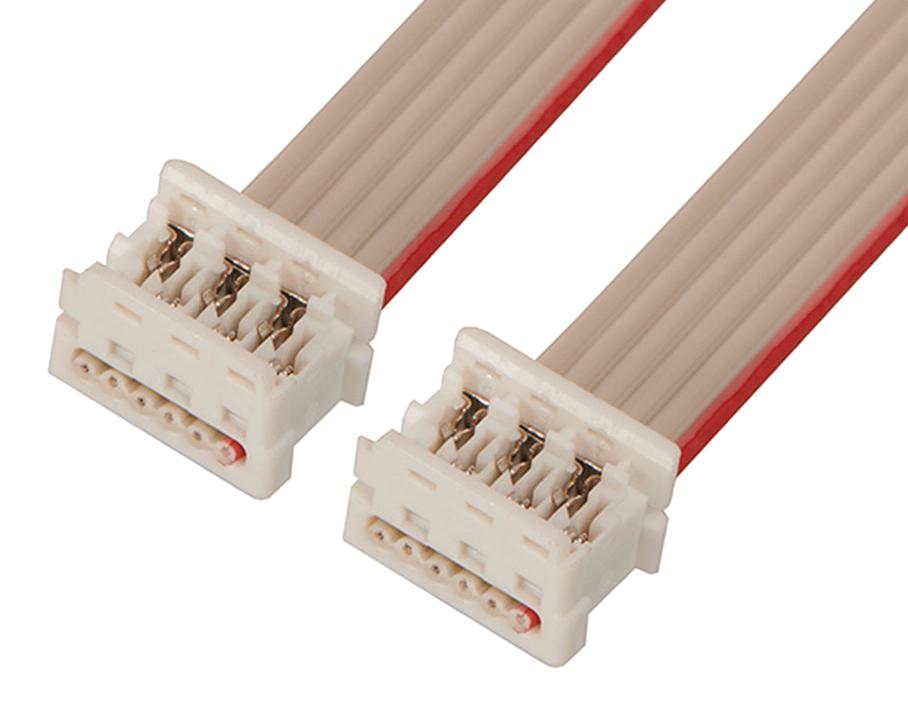

MOLEX 923150616 Ribbon Cable Assembly
Off-the-shelf Picoflex ribbon cable assemblies offer standard lengths and circuit configurations, ideal for early-stage projects. They feature polarized connectors to prevent mis-mating, one-piece housings for secure retention, and dual-beam contacts providing four contact points per circuit for reliable connections. Locking slots and inspection windows ensure quality and secure mating. Gold plating improves durability in high-vibration environments. Designed for IDT-to-IDT connections with 1.27mm pitch, supporting 28 AWG wire, rated at 250V and 1.2A, with UL and CSA certifications, operating from -40°C to +105°C, ensuring reliable, long-lasting electrical performance.
MOLEX 923150616 Ribbon Cable Assembly Specifications:
- Cable Length: 160.00mm
- Circuits: 6
- Pitch - Mating Interface: 1.27mm
- Wire Size: 28 AWG
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 1.2A
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Color - Resin: Natural
- Lock-to Mating Part: None
- Waterproof / Dustproof: No
- Wire Insulation Diameter: 1.27mm
- Temperature Range: -40°C to +105°C
- Certifications: UL Listed, CSA Certified
- Durability: Rated for at least 30 connect/disconnect cycles
Buy the Molex 92315 Series U+2013 Reliable Ribbon Cable Assemblies for Industrial Applications
Enhance your electronics projects with Molex's reliable ribbon cable assemblies, designed for versatility and durability. Featuring polarized connectors, 1.27mm pitch, and rated for 250V and 1.2A, these assemblies support industrial automation, consumer electronics, and medical devices. The durable polyester housing, tin-plated phosphor bronze contacts, and inspection windows provide secure, high-quality connections. Operating efficiently from -40°C to +105°C, they ensure long-term performance in demanding environments. Purchase online today for fast delivery and dependable industrial-grade connectivity solutions.
Order your Molex Series 92315 ribbon cable assembly today and ensure reliable, high-quality connections for your industrial automation and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 923150616?
You can click on the BUY or RFQ button to purchase 923150616 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923150616?
You can download the 923150616 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923150616?
MOLEX
