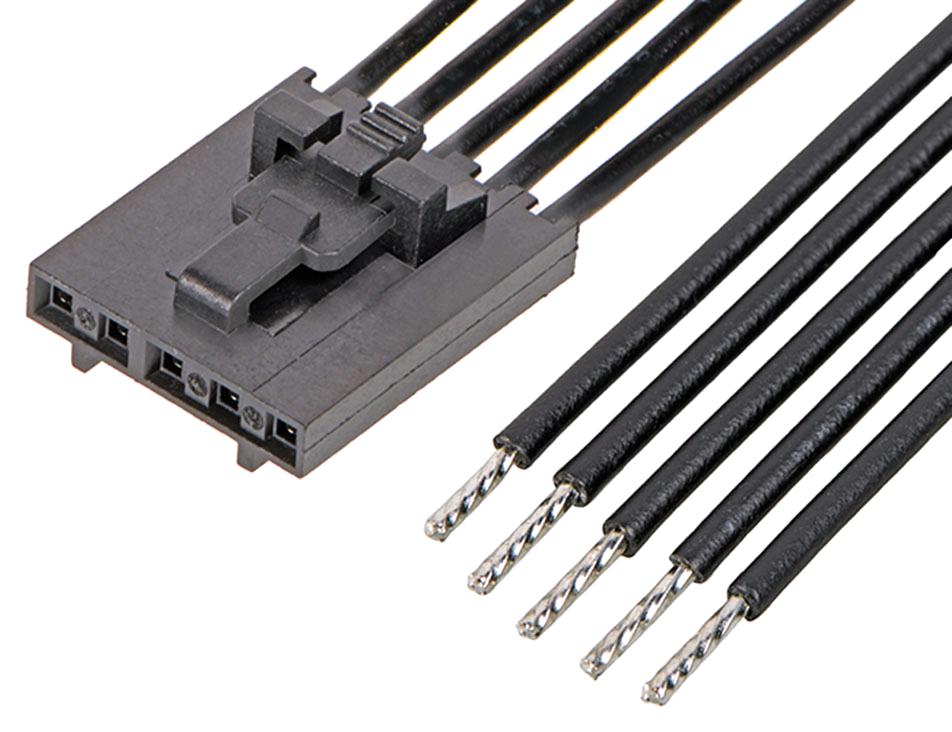

MOLEX 2162711052 Stackable Cable Assembly
These off-the-shelf stackable linear positive lock cable assemblies are ideal for prototyping and mass production across various industries. They feature multiple termination options including crimp, FFC, and IDT, with terminal position assurance locks to prevent disengagement and enhance reliability. Designed for applications in consumer electronics, automotive, medical, and telecommunications, these assemblies support high-vibration environments with secure positive-lock interfaces. Rated up to 600V and 3A, they are made with durable polyester alloy housings, tin-plated phosphor bronze contacts, operational from -40°C to +105°C, and support up to 25 mating cycles for long-lasting performance.
MOLEX 2162711052 Stackable Cable Assembly Specifications:
- Connector Type: Female-to-Pigtail, Stackable, Discrete Wire Assembly
- Cable Length: 150.00mm
- Number of Circuits: 5
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 4.598 grams
- Number of Rows: 1
- Packaging: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.63mm
- Wire Size AWG: 22
- Electrical Current Max: 3.0A
- Voltage Max: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 25
- Rated Voltage and Current: 600V, 3A
- RoHS, China RoHS, Reach SVHC Compliant
- UL Certification: 11028
- Application Environment: Consumer electronics, industrial, automotive, medical, telecommunications
Buy the Buy Molex Signal Wire-to-Wire Part Number 2162711052 Online
Discover the Molex stackable cable assembly designed for reliable signal connections across industrial, automotive, and consumer electronics. Featuring positive lock mechanisms and multiple termination options including crimp, FFC, and IDT, this cable assembly ensures secure engagement even in high-vibration environments. Rated for up to 600V and 3A, with a robust polyester alloy housing and tin-plated phosphor bronze contacts, it supports up to 25 mating cycles. Its compact, stackable footprint allows flexible mounting for prototyping or mass production, ensuring long-lasting, dependable performance.
Get Molex 2162711052 today—engineered for secure connections, high reliability, and versatile industrial applications.
