MOLEX 923151450 Ribbon Cable Assembly
The Picoflex ribbon cable assembly, designed for high-reliability connections in consumer electronics, industrial automation, and medical devices, offers a 500mm length with 14 circuits. It features polarized connectors, one-piece housings, and dual-beam contacts that ensure four contact points per circuit for secure, stable connections. The assembly includes insulation displacement termination, scalloped cable profile for precise positioning, and optional gold plating for extended mating cycle life. Constructed with polyester housing, phosphor bronze contacts, and tin plating, it supports up to 1.2A at 250V and operates from -40°C to +105°C, with a minimum of 30 mating cycles.
MOLEX 923151450 Ribbon Cable Assembly Specifications:
- Cable Length: 500mm
- Circuits: 14
- Material - Housing: Polyester
- Material - Contacts: Phosphor Bronze
- Plating: Tin
- Wire Size: 28 AWG
- Maximum Voltage: 250V
- Maximum Current: 1.2A
- Temperature Range: -40°C to +105°C
- Durability: Minimum 30 mating cycles
- Pitch - Mating Interface: 1.27mm
- Color - Resin: Natural
- Connector Gender: Female-Female
- Locking: Final seat slots for secure connection
- Insulation Displacement Termination: Yes
- Protection: Polarized for mis-mating prevention
- Additional Features: Ejection tooling slots, scalloped cable profile, optional gold plating

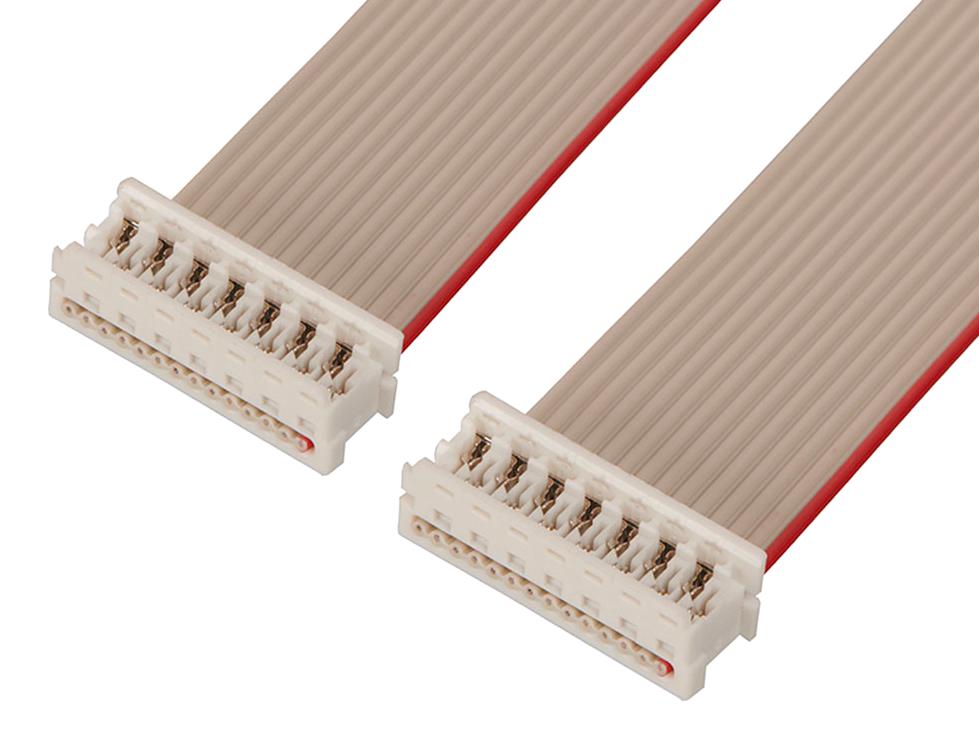

Buy the Buy Molex Picoflex Ribbon Cable Assembly Part Number 923151450 Online
Order the Molex Ribbon Cable Assembly online today for your industrial or consumer electronics projects. Featuring a 500mm length, 14 circuits, polarized connectors, and optional gold plating, this assembly ensures reliable, long-lasting connections. Its robust construction with polyester housing and tin plating supports high voltage and current ratings up to 250V and 1.2A, while withstanding temperatures from -40°C to +105°C. Designed for ease of installation with insulation displacement termination and secure locking, it is perfect for automation, medical devices, and renewable energy systems. Purchase now for quick delivery and excellent performance.
Get Molex 923151450 today—designed for durable, high-reliability connections with secure locking and corrosion-resistant plating.
Frequently Asked Questions
Where can I buy MOLEX 923151450?
You can click on the BUY or RFQ button to purchase 923151450 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151450?
You can download the 923151450 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151450?
MOLEX
