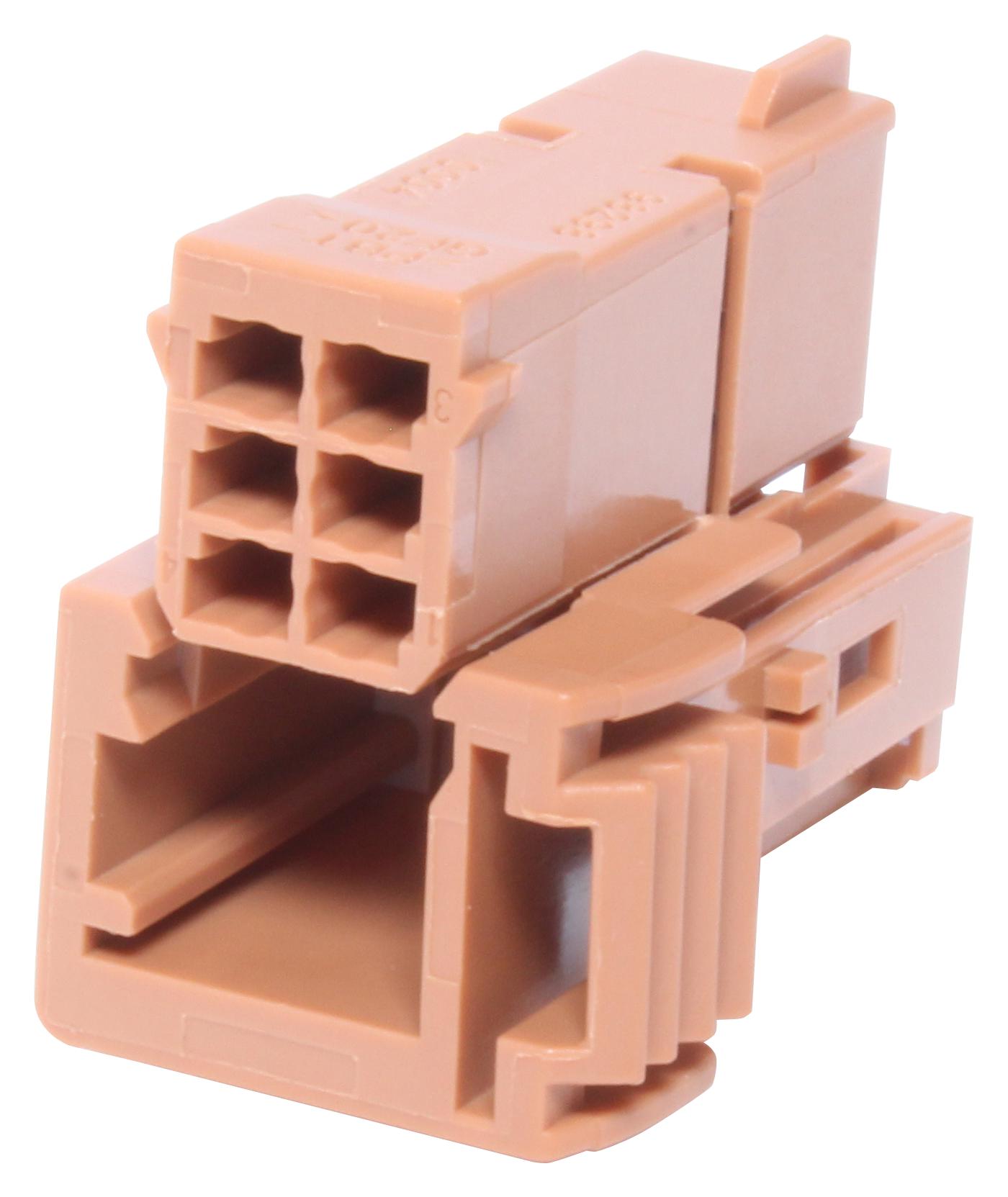

MOLEX 982980004 Power Connector
The 2.54mm Pitch MOX Receptacle Housing is a durable, brown, dual-row connector designed for power and wire-to-board applications. It features 6 circuits, a breakable design for versatile configurations, and is compatible with the 98658 MOX Crimp Terminal. Made of polyester resin, it operates within a temperature range of -40°C to +105°C, handles a maximum current of 6.0A per contact, and complies with RoHS and other environmental standards. Ideal for industrial wiring, PCB, and electronic device connections, ensuring reliable performance in demanding environments.
MOLEX 982980004 Power Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Number of Circuits: 6
- Color - Resin: Brown
- Gender: Receptacle
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 6.0A
- Net Weight: 2.528g
- Packaging Type: Bag
- Row Configuration: Dual Row
- Lock to Mating Part: No
- Glow-Wire Capable: No
- Polarized to Mating Part: Yes
- Stackable: No
- RoHS, REACH, China RoHS compliant
- Halogen-Free: Yes
Buy the Molex 98298 U–2013 Reliable Power Connector for Industrial Applications
Secure your electronic connections with the durable Molex Power Connector designed for industrial power and PCB applications. Featuring 6 circuits with a 2.54mm pitch and breakable design, it ensures versatile configuration options. Made of eco-friendly polyester resin, it operates reliably from -40°C to +105°C and supports a maximum current of 6.0A per contact. Compliant with RoHS, China RoHS, and halogen-free standards, this connector guarantees environmentally responsible, high-performance electrical connectivity for various electronic systems.
Buy Molex 98298 now and experience unmatched reliability and performance in industrial power and electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 982980004?
You can click on the BUY or RFQ button to purchase 982980004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 982980004?
You can download the 982980004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 982980004?
MOLEX
