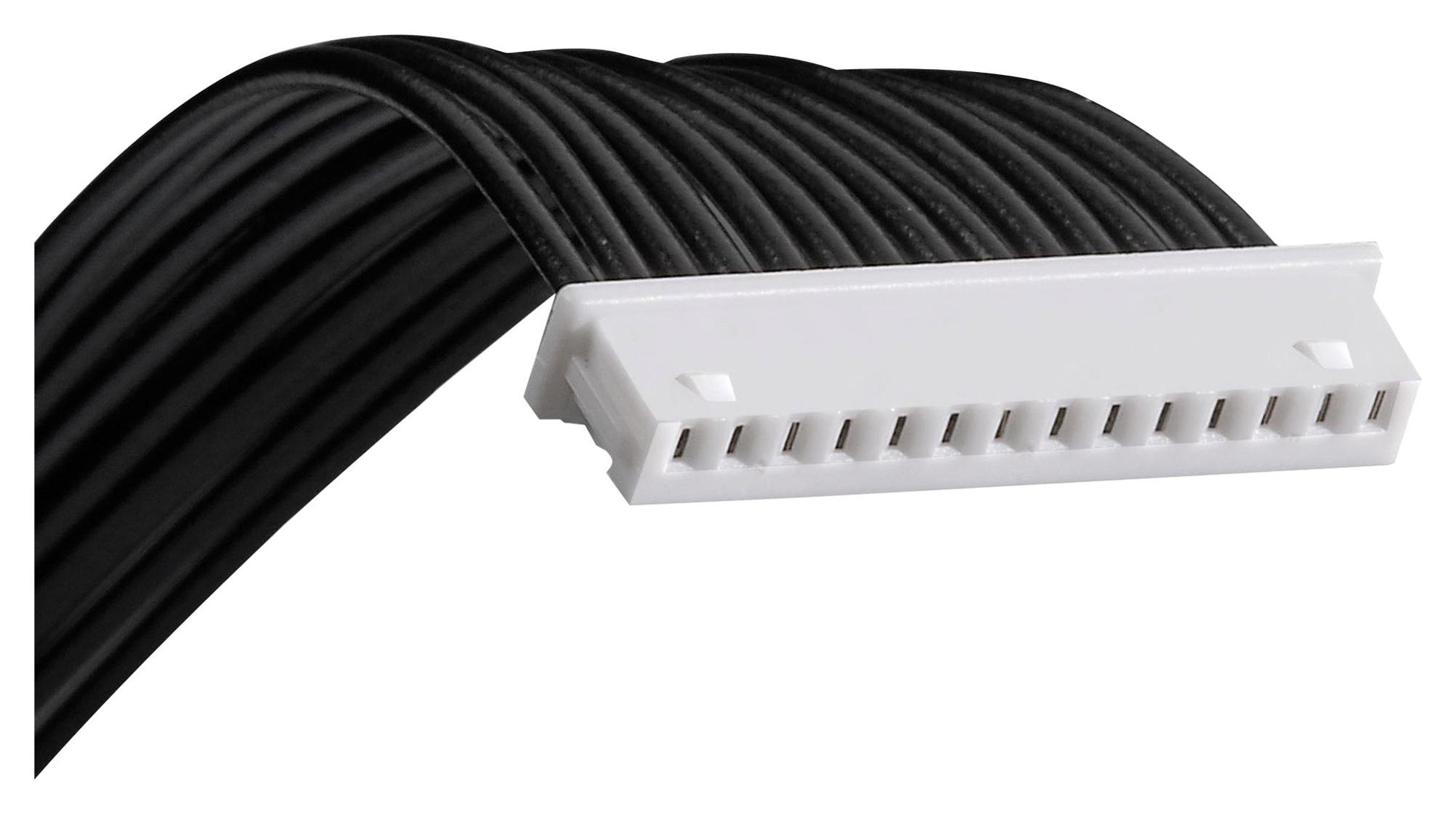

MOLEX 151341403 PicoBlade Cable Assembly
The MOLEX 15134-1403 is a PicoBlade cable assembly designed for signal transmission in wire-to-board and wire-to-wire applications. This dual-ended assembly features PicoBlade connectors, a 300mm cable length, and 14 circuits. Constructed with phosphor bronze and polyester materials, it provides reliable performance and is suitable for various industrial and commercial applications. The assembly is RoHS compliant and offers a secure, robust connection.
MOLEX 151341403 PicoBlade Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 15134
- application: Signal, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- overmolded: No
- cable_length: 300.00mm
- circuits_loaded: 14
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight_g: 7.390
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- upc: 191128412551
