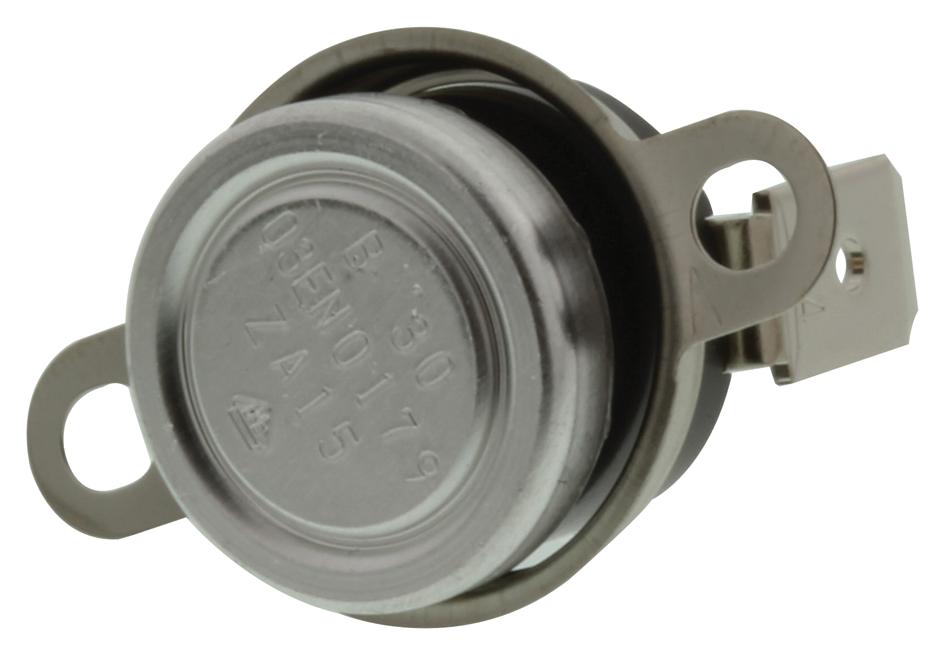

MULTICOMP PRO 03EN35T0442030 Thermostat Switch
The 03EN series from Multicomp comprises 1/2-inch disc-type thermostats with an automatic reset function, rated for 16A at 250VAC. They feature switching cycles up to 100,000, small tolerances, and hysteresis, operating within a response temperature range of 0°C to 150°C. Encased in thermosetting plastic housing with 6.3mm x 0.8mm terminals and a single-pole NC or NO contact configuration, these thermostats are ideal for industrial applications, electronics, sensing, and instrumentation. They include a small aluminum cap on a moveable bracket, rated 4.6 stars, with a 12-month warranty.
MULTICOMP PRO 03EN35T0442030 Thermostat Switch Specifications:
- Response Temperature: 0°C to 150°C
- Rated Current: 16A at 250VAC (cos φ 0.95)
- Switching Cycles: Up to 100,000
- Housing Material: Thermosetting plastic
- Housing Dimensions: 12mm
- Terminals: 6.3mm x 0.8mm
- Contact Configuration: Normally closed / Normally open
- Dielectric Strength: 2kVAC
- Housing Color: Encased with small aluminum cap
- Mounting: Moving bracket
- Maximum load: 16A, 250VAC
- Certifications: Not specified
- User rating: 4.6 out of 5 stars
- Warranty: 12 months
Buy the Multicomp 03EN Series – Reliable Thermal Cut-Out for Industrial Applications
Purchase the Multicomp Series 03EN thermostats online today to secure dependable thermal protection for your industrial, electronic, or sensing applications. Featuring a robust 16A rating at 250VAC, they offer a response temperature range from 0°C to 150°C, with up to 100,000 switching cycles ensuring long-term durability. Encased in thermosetting plastic with a small aluminum cap, these thermostats include a moveable bracket for easy mounting. Ideal for use in automation, electronics, and advanced sensing systems, they come with a 12-month warranty for peace of mind.
Order your Multicomp Series 03EN thermostats today and ensure your electronic and industrial projects operate reliably with durable, high-performance thermal switches.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 03EN35T0442030?
You can click on the BUY or RFQ button to purchase 03EN35T0442030 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 03EN35T0442030?
You can download the 03EN35T0442030 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 03EN35T0442030?
MULTICOMP PRO
