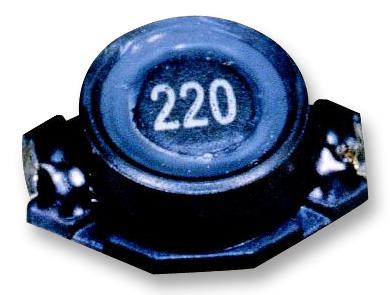

MULTICOMP PRO MCBFS7330330MU Power Inductor
This high-quality inductor features 33H inductance with 20% tolerance, supporting up to 3.6A current. Suitable for various electronic and industrial applications, it offers excellent electrical and mechanical stability, with RoHS compliance, corrosion resistance, and temperature ratings from -55°C to +130°C. Manufactured with lead-free solder, it ensures reliability in demanding environments. Its compact design and precise specifications make it ideal for power filtering, RF circuits, and switching power supplies, providing consistent inductance and minimal DCR variation for optimal performance.
MULTICOMP PRO MCBFS7330330MU Power Inductor Specifications:
- Inductance: 33H with 20% tolerance
- Maximum Current: 3.6A
- DC Resistance (DCR): 75mΩ (Max.)
- Operating Temperature Range: -55°C to +130°C
- RoHS Compliant
- Solder Material: Lead-free (Sn99.3% / Cu0.7%)
- Core Material: NSD DR9.7 x 5.8
- Wire: 0.4mm x 1P 2UEWF (155°C)
- Moisture Resistance: 97°C 98% RH, 8 hrs steam aging
- Solderability: 95% surface coverage, 260°C ±5°C, 15s dip
- Physical Dimensions: Max. a 18.54mm, B 15.24mm, C 7.62mm, D 127mm, E 12.7mm, F 12.45mm
Buy the Farnell MCBFS7330-330MU – Reliable Inductor for Industrial Applications
Enhance your electronic designs with the Farnell Power Inductor featuring 33H inductance and 3.6A support. Designed for reliability and stability, this inductor is ideal for power filtering, RF circuits, and switching power supplies. Its RoHS compliance, lead-free solder, and wide temperature range make it suitable for industrial applications where longevity and performance matter. Easy to integrate into your PCB layouts, this high-quality component offers consistent inductance, low DCR, and excellent thermal characteristics, ensuring your projects perform optimally over time.
Order your Farnell Series MCBFS7330-330MU inductor today and give your projects the dependable quality they deserve, ensuring optimal power and signal stability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCBFS7330330MU?
You can click on the BUY or RFQ button to purchase MCBFS7330330MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCBFS7330330MU?
You can download the MCBFS7330330MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCBFS7330330MU?
MULTICOMP PRO
