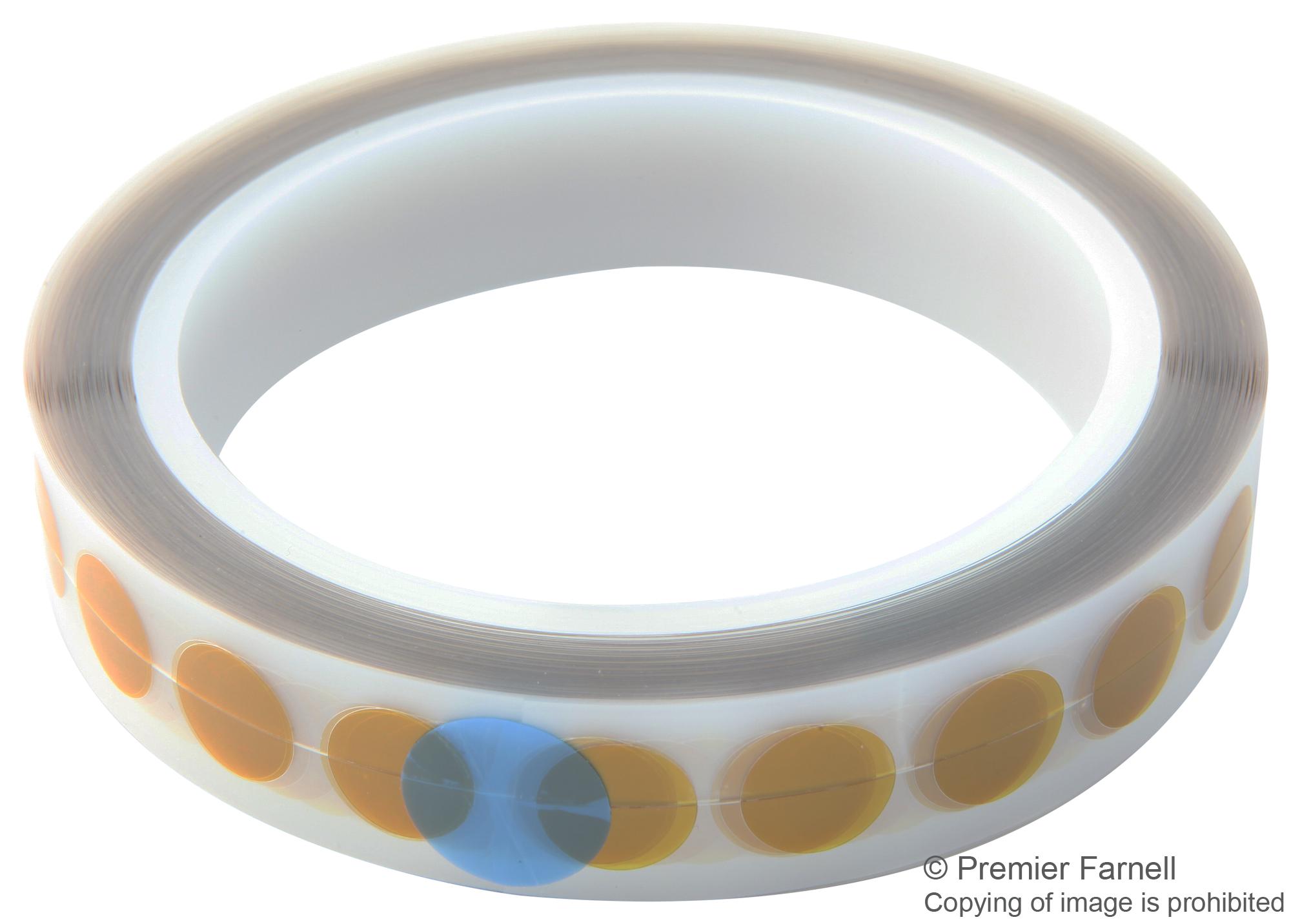

MULTICOMP-PRO 0531003 High Temperature Masking Dots
The 053-1003 high-temperature masking tape and dots are designed for protecting gold fingers on printed circuit boards during wave soldering or dip processes. Made from polyimide, it provides excellent dimensional stability, dielectric insulation, and strong adhesion over a wide temperature range up to 290°C short-term. The masking dots feature a polyimide film with silicone adhesive on a clear liner, offering flame and chemical resistance. Ideal for PCB masking, solder wave masking, and electrical insulation, it is environmentally friendly, RoHS compliant, and suitable for industrial use due to its thermal and solvent resistance.
MULTICOMP-PRO 0531003 High Temperature Masking Dots Specifications:
- Base Film Thickness: 0.025mm (1.0MIL)
- Total Thickness: 0.070mm (2.8MIL)
- Peel Strength: 2.7N/cm (250z/In)
- Tensile Strength: 40N/cm (22lbs/In)
- Elongation: 50%
- Heat Resistance (Short Term): 290°C (554°F)
- Heat Resistance: 230°C (446°F)
- Dielectric Strength: 7000 volts
- Structure: Silicone Adhesive/Polyimide Film
- Appearance: Amber
- Dimensions: 12mm width, roll of 1000 masking dots
Buy the Multicomp Series High Temperature Masking Dots: 0531003
Order the Multicomp High Temperature Masking Dots today for reliable performance during PCB soldering, wave masking, and electrical insulation. Made from durable polyimide film with silicone adhesive, these dots offer excellent heat resistance up to 290°C for short-term use. Their flame and chemical resistance makes them ideal for industrial applications requiring high thermal stability and dielectric insulation. Easy to apply and remove, these masking dots ensure precise PCB protection, reduce rework, and enhance manufacturing efficiency. Purchase online now for fast delivery and consistent quality.
Get Multicomp 053-1003 high-temperature masking dots today—perfect for PCB masking, wave soldering, and high heat applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 0531003?
You can click on the BUY or RFQ button to purchase 0531003 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 0531003?
You can download the 0531003 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 0531003?
MULTICOMP-PRO
