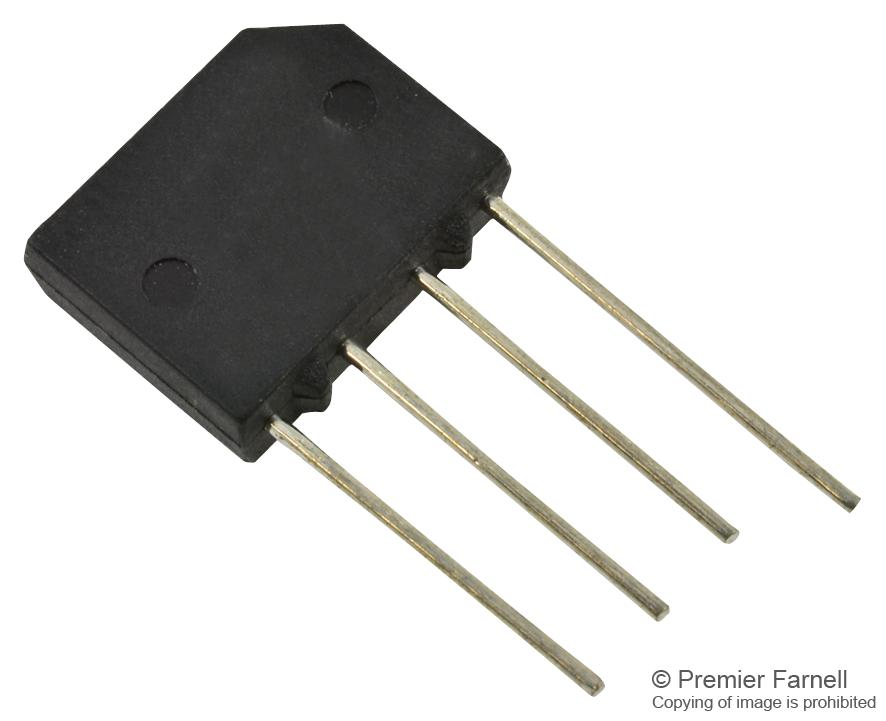

MULTICOMP PRO KBP204G Bridge Rectifier
The KBP204G is a glass-passivated bridge rectifier designed for printed circuit board (PCB) applications. It can be mounted in any position and features a maximum RMS input voltage of 280V, a maximum DC blocking voltage of 400V, and a peak forward surge current of 60A. The device has a maximum reverse current of 10 microamps at 400V per element. Suitable for mains rectification, this bridge rectifier is rated for 2A current, with RoHS compliance, UL flammability class 94-0, and is ideal for industrial power and electronic circuits.
MULTICOMP PRO KBP204G Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50V to 1000V depending on model
- Maximum RMS Input Voltage: 35V to 700V depending on model
- Maximum DC Blocking Voltage: 50V to 1000V depending on model
- Maximum Average Forward Rectified Current: 2A
- Peak Forward Surge Current: 60A for 8.3 ms
- Maximum Forward Voltage Drop: 1.4V at 2A
- Maximum Reverse Current at Rated Voltage: 10 microamperes
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mounting Position: Any
- Flammability: UL 94V-0
- Material: Glass passivated chip
- Surge Overload Rating: 60A peak
- RoHS compliant, UL flammability classified 94-0
Buy the Multicomp U2000– Reliable Bridge Rectifier for Industrial Applications
Enhance your power circuit with the high-quality Multicomp Bridge Rectifier rated for 2A and 400V, featuring RoHS compliance, UL 94-0 flammability, and outstanding surge capacity. This reliable device is ideal for mains rectification, PCB mounting, and industrial applications, providing consistent performance under demanding conditions. Easy to install in any position, it supports a wide operating temperature range and ensures durability with glass passivation technology. Order online now to secure fast delivery and keep your projects powered with confidence.
Order your Multicomp SeriesKBP204G 400V 2A Bridge Rectifier today and ensure reliable power conversion for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO KBP204G?
You can click on the BUY or RFQ button to purchase KBP204G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part KBP204G?
You can download the KBP204G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of KBP204G?
MULTICOMP PRO
