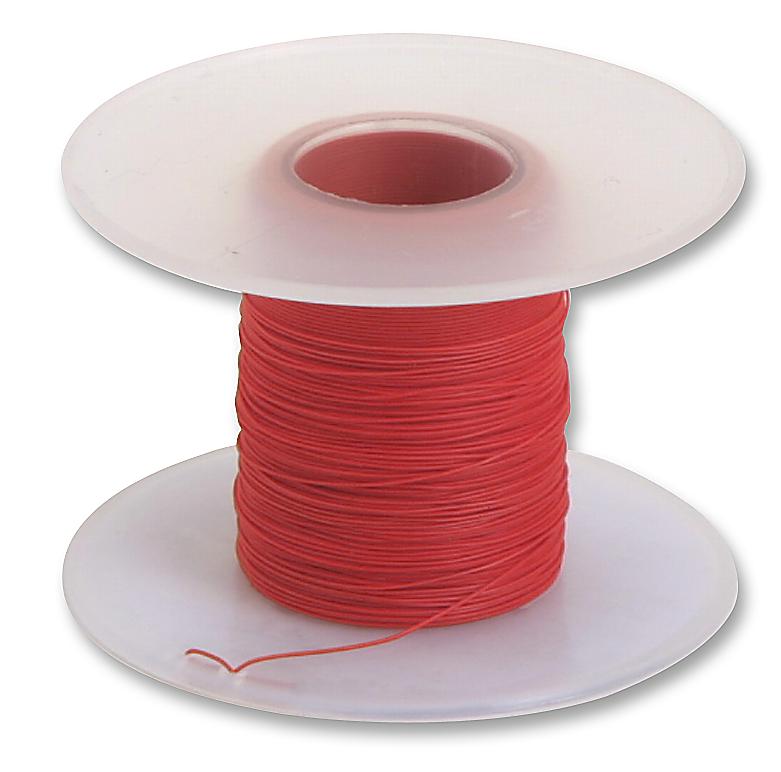

MULTICOMP-PRO 10030TR ETFE Wire
ETFE wires are high-performance, insulated conductor cables suitable for demanding applications in electronics and aerospace industries. Made with tin-plated copper conductors, they feature ETFE (Tefzel) insulation, which provides excellent thermal stability, chemical resistance, and electrical properties. These wires are rated for maximum operating voltage of 375V at 50Hz and tested up to 1,500V. With a continuous operating temperature of -90°C to +150°C, they are ideal for environments requiring high durability and stability, available in various colors with a tensile strength of 30 N/mm2 for reliable performance.
MULTICOMP-PRO 10030TR ETFE Wire Specifications:
- Conductor-Diameter: 0.25mm to 0.63mm
- Outside-Diameter: 0.56mm to 0.94mm
- Wall Thickness: 0.15mm
- Resistance per kilometre: 365 to 56 ohms
- Operating Voltage: Max. 375V / 50Hz
- Testing Voltage: 1,500V / 50Hz
- Continuous Operating Temperature: -90°C to +150°C
- Tensile Strength: 30 N/mm2
- Elongation of Isolation: 150%
- Elongation of Conductor: 15% minimum, 20% maximum
- Current Capacity at 55°C: 3.4 to 5.7 A
- Color Options: 10 standard colors
- Insulation Resistance: Min. 3,000 MΩ x km
- Wire Length: 100 meters
- Suitable for self-cutting and stripping tools
- Tested for VDE 0881 compliance
Buy the Premier Farnell Series Pro Power ETFE Wire: 100-30TR
Order Premier Farnell ETFE Wire today for reliable performance in high-temperature and chemically resistant applications. With excellent electrical properties and a rating up to 375V, these wires are perfect for aerospace and advanced electronics. Available in 10 colors, each 100 meters long, they feature tin-plated copper conductors with high tensile strength, excellent elongation, and insulation resistance. Designed for easy self-cutting and stripping, enjoy fast online purchasing, secure delivery, and confidence in high-quality, durable wiring solutions suited for extreme conditions.
Get Premier Farnell Pro Power ETFE Wire today—constructed for high temperature stability and chemical resistance, perfect for demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 10030TR?
You can click on the BUY or RFQ button to purchase 10030TR from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 10030TR?
You can download the 10030TR datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 10030TR?
MULTICOMP-PRO
