MULTICOMP PRO BC108 NPN Transistor

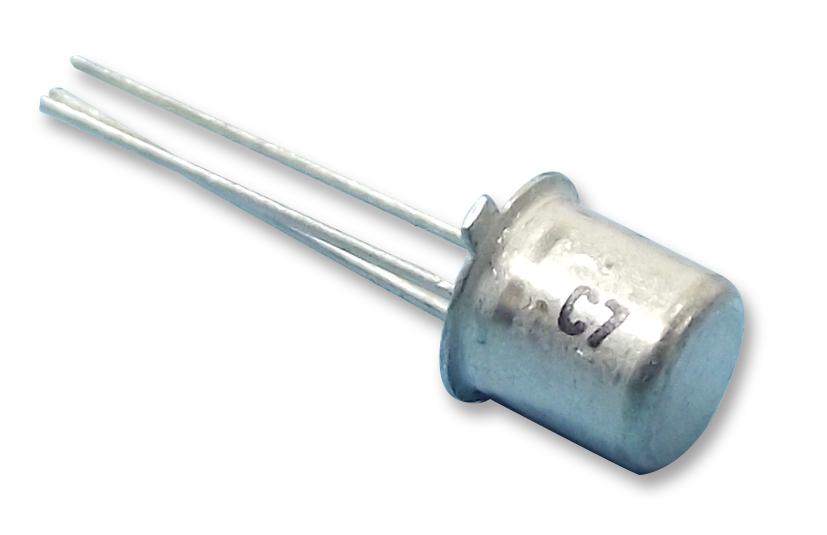

The BC108 is a highly reliable NPN silicon planar transistor optimized for high-frequency applications up to 150MHz, suitable for signal amplification and switching. It features a maximum collector-emitter voltage of 25V, collector-base voltage of 30V, and collector current of 200mA. The device's low noise figure of 10dB makes it ideal for audio and RF circuits. Its compact TO-18 metal can package ensures efficient heat dissipation and durability in various electronic devices, providing consistent performance in demanding environments.
MULTICOMP PRO BC108 NPN Transistor Specifications:
- Collector-Emitter Voltage: 25V
- Collector-Base Voltage: 30V
- Emitter-Base Voltage: 5V
- Collector Current: 200mA
- Power Dissipation: 600mW at 25°C
- Transition Frequency: 150MHz
- Package: TO-18 metal can
- Noise Figure: 10dB
- Input Impedance: 32kΩ to 85kΩ (B Group), 6kΩ to 15kΩ (C Group)
- Output Admittance: 30pF to 110pF
- Operating Junction Temperature Range: -65°C to +200°C
- Thermal Resistance Junction to Ambient: 583°C/W
Buy the Multicomp Series BC108 NPN Transistor: BC108
Order the Multicomp Series BC108 NPN transistor online today and enhance your electronic projects with high-frequency performance, low noise, and reliable operation in a durable TO-18 package. Perfect for RF and audio applications, this transistor offers a maximum collector-emitter voltage of 25V and collector current of 200mA. It guarantees consistent, precision amplification and switching capabilities for both professional and hobbyist electronics, ensuring your projects operate efficiently and reliably with easy online purchasing and fast delivery.
Buy Multicomp BC108 now and experience unmatched reliability and high-frequency performance for your signal amplification and switching needs.
