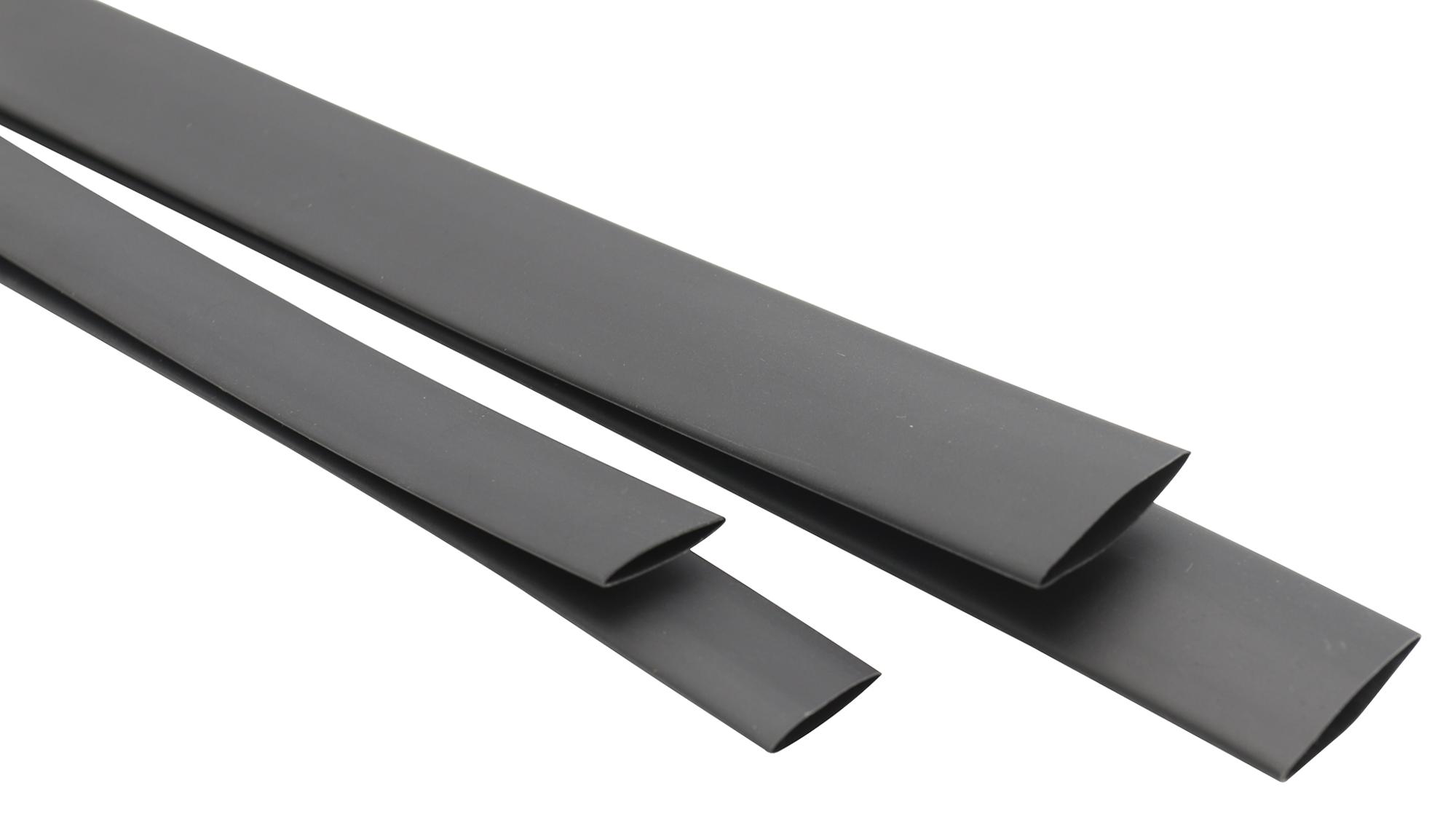

MULTICOMP PRO 13683 Heat Shrink Tubing
The heat shrink tubing is made from modified radiation cross-linked polyolefin, featuring a halogen-free, flexible formulation that shrinks at lower temperatures. Suitable for protecting temperature-sensitive components like PVC jacketed wires and cables, it offers excellent mechanical and electrical performance, including high tensile strength, elongation, dielectric strength, and resistance to heat shock, aging, and corrosion. Available in various sizes and colors with a 2:1 shrink ratio, this tubing ensures reliable insulation and protection for industrial applications, meeting RoHS and UL standards.
MULTICOMP PRO 13683 Heat Shrink Tubing Specifications:
- Material: Modified radiation cross-linked polyolefin
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colors: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^12 ohm-cm
- Heat Aging Tensile Strength: 27.3 MPa after 168 hours at 158°C
- Longitudinal Shrinkage: 15%
- Flammability: Meets FMVSS302
- Copper Stability: Pass
- Copper Corrosion: No corrosion
- External Diameter Range: 1.6 mm to 50.8 mm
- Wall Thickness Range: 0.2 mm to 0.5 mm
- Product Lengths: 5m, 25m, 50m, 100m options depending on size
- Certifications: RoHS, UL
Buy the PrO-POWER 13683 – Reliable Heat Shrink Tubing for Industrial Applications
Purchase PrO-POWER heat shrink tubing online today and enjoy premium protection for your cables and components. Designed with a flexible, halogen-free material, it shrinks reliably at low temperatures, providing excellent electrical insulation and mechanical strength. Available in various sizes and colors, this tubing meets all necessary standards for safety and performance, including RoHS and UL certifications. Whether for industrial or electronics use, this tubing ensures long-lasting durability and easy installation, making it a top choice for professionals seeking quality and dependability in electrical insulation solutions.
Get PrO-POWER 13683 today—built for precision and long-lasting durability in electrical protection.
