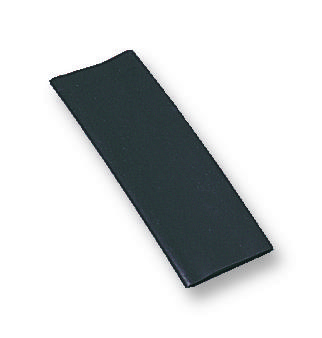

MULTICOMP PRO 13746 Polyolefin Heat Shrink Tubing
The MULTICOMP PRO 13746 heat shrink tubing is manufactured with modified radiation cross-linked polyolefin and features a specially designed halogen-free formulation. This tubing provides excellent flexibility and shrinks at lower temperatures, making it ideal for protecting temperature-sensitive components such as PVC-jacketed wire and cable where quick shrinkage is required. It exhibits good mechanical and electrical performance, ensuring reliable insulation and protection in various industrial applications.
MULTICOMP PRO 13746 Polyolefin Heat Shrink Tubing Specifications:
- Halogen Free: Yes
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Available Colours: Green/Yellow, White, Green, Yellow, Blue, Red, Black, Grey
- Tensile Strength: ≥10.4 Mpa
- Ultimate Elongation: ≥200%
- Longitudinal Shrinkage: +/-5%
- Heat Aging Tensile Strength: ≥7.3 Mpa
- Heat Aging Ultimate Elongation: ≥100%
- Heat Shock: No cracking, No dripping
- Flammability: Pass (FMVSS302)
- Dielectric Strength: ≥15 kV/mm
- Volume Resistivity: ≥1 × 1014Ω cm
- Copper Stability: Pass (UL224)
- Copper Corrosion: No corrosion
- Size (mm): 1.2
- Wall Thickness (mm): 0.28
- Internal Diameter (mm): 6.5±0.2
- After Recovery Internal Diameter (mm): 3.0
- After Recovery Wall Thickness (mm): 0.56
