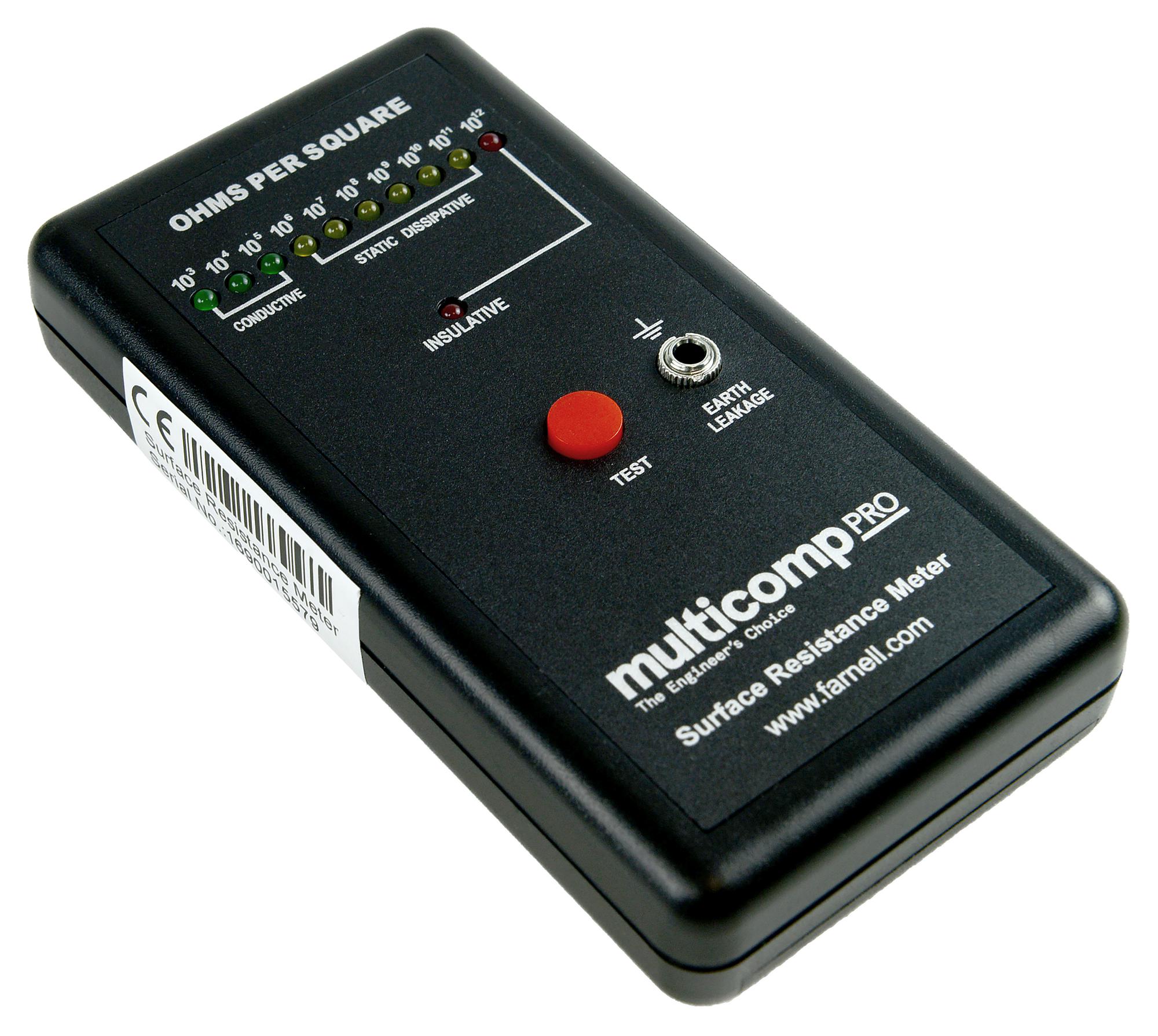

MULTICOMP PRO MP005768 Surface Resistance Meter
The Multicomp Pro MP005768 surface resistance meter measures surface resistance and resistance to ground, suitable for conductive, static dissipative, and insulative materials. To test surface resistance, place the meter on the area and press the button; for ground resistance, connect the ground lead to the earth socket, clip the crocodile to the surface, and press the button. It features LED indicators for different surface types and operates within 5°C to 49°C using a 9V alkaline battery. With ±10% accuracy, it provides reliable measurements in electronics manufacturing and static control applications.
MULTICOMP PRO MP005768 Surface Resistance Meter Specifications:
- Measurement Range: Surface resistance from 10^6 to 10^12 ohms, resistance to ground in ohms
- Operating Temperature: 5°C to 49°C
- Storage Temperature: -15°C to 60°C
- Power Supply: 9V alkaline battery, not included
- Test Voltage: 9V nominal
- Accuracy: ±10%
- Repeatability: ±5%
- Weight: approximately 6 ounces
- Display: LED indicators (green for conductive, yellow for static dissipative, red for insulative surfaces)
- Calibration: Annually recommended
- RoHS Compliant: Yes
Buy the Multicomp Pro MP005768 – Reliable Surface Resistance for Industrial Applications
Purchase the Multicomp Pro surface resistance meter online today and experience precise testing of static dissipative, conductive, and insulative surfaces. Ideal for electronics manufacturing, static control, and quality assurance, this reliable device measures surface resistance and ground resistance with LED indicators for quick interpretation. Powered by a 9V alkaline battery, it offers accurate measurements with ±10% accuracy and easy operation within a temperature range of 5°C to 49°C. Ensure safety and quality in your production environment—order now for fast delivery and trusted performance.
Buy Multicomp Pro MP005768 surface resistance meter now and ensure precise static control and ground resistance testing for industrial and electronic manufacturing.
