MULTICOMP PRO 1430 Flame Retardant Polyethylene Tubing

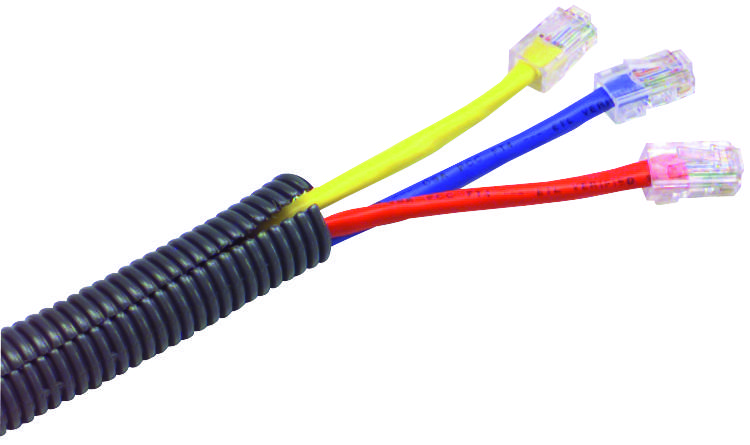

The MULTICOMP PRO 1430 is a flexible convoluted tubing or conduit manufactured from a flame retardant polyethylene resin. It exhibits excellent flexibility and good abrasion and chemical resistance, making it suitable for protecting wires and cables in a variety of applications, including automotive, industrial machinery, and consumer electronics. The tubing's operating temperature range is -40°C to +93°C, ensuring reliable performance in diverse environments. Product tolerances are general and may be adjusted based on material specifications. Cut-to-length tolerances vary depending on the length of the tubing.
MULTICOMP PRO 1430 Flame Retardant Polyethylene Tubing Specifications:
- Flexibility: Excellent
- Abrasion Resistance: Good
- Chemical Resistance: Good
- Operating Temperature: -40°C to +93°C
- Specific Gravity/Density: 1.005
- Elongation@Break: 945%
- Elongation@Yield: 167%
- Tensile Strength@25C: 14.99619 MPa
- Flexural Modulus: 240 MPa
- Melting Point: 239°F (115°C)
- Notched Izod Impact Test: 10 ft lb/in
- Heat Deflection Temperature@66psi: 104°F (40°C)
- Heat Deflection Temperature@264psi: 122°F (50°C)
- Nominal ID Diameter: 3/8" (9mm)
- Dimension A ID Min: 8.66 mm
- Dimension A ID Max: 9.65 mm
- Dimension B OD Min: 12.59 mm
- Dimension B OD Max: 13.36 mm
- Dimension C Wall Min: 0.12 mm
