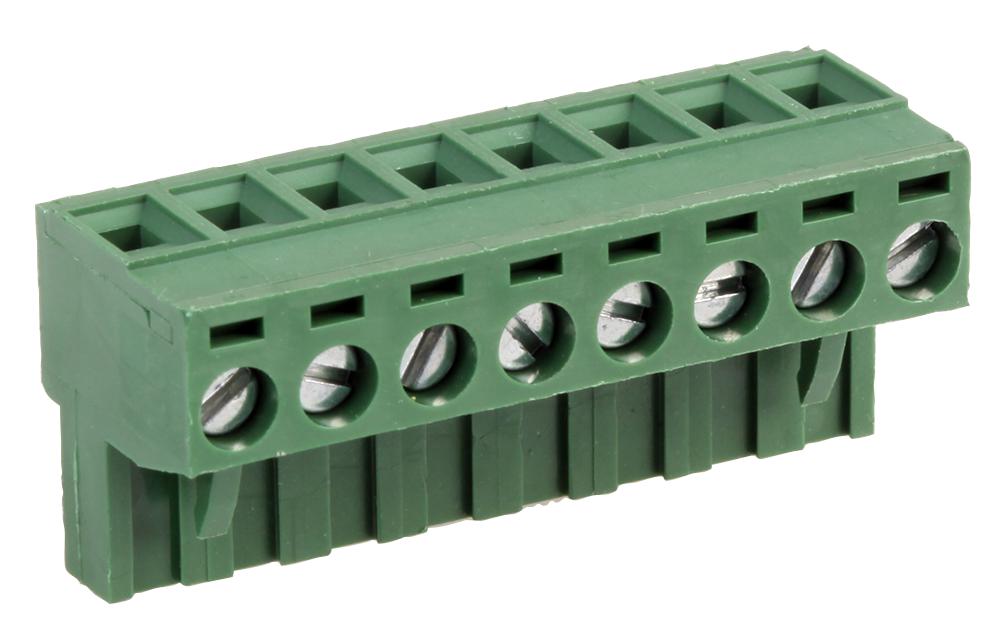

MULTICOMP PRO MC000181 Pluggable Terminal Block
This pluggable terminal block series offers reliable connectivity solutions for industrial control panels and wiring applications. Rated at 16 Amperes and 300V AC, it features a polypropylene insulating body with phosphor bronze contacts that are tin plated, ensuring durability and corrosion resistance. The terminal blocks accommodate wire ranges from 22 AWG to 12 AWG with a strip length of 4mm to 5mm, and a pitch of 5.08mm. Suitable for temperatures from -40°C to +105°C, they support high insulation withstand voltage of 2000V AC and insulation resistance over 2000 megaohms. Various configurations from 2 to 12 ways allow flexible wiring setup.
MULTICOMP PRO MC000181 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes
- Voltage Rating: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 22 AWG to 12 AWG
- Screw Torque: 7 Ib-inch
- Material: Polyamide 66 insulating body, phosphor bronze contact, brass cage clamp, steel zinc+Cr*3 screw
- Dimensions: Pitch 5.08mm (0.2 inch)
- Pole Configurations: 2, 3, 4, 5, 6, 8, 10, 12 ways
- Pole Lengths: varies with number of poles, e.g., 10.16mm for 2 pole, up to 60.96mm for 12 pole
Buy the Multicomp MC000181 – Reliable Terminal Block for Industrial Applications
Secure your electrical connections with the reliable and easy-to-assemble pluggable terminal blocks. Rated at 16A and 300V AC, they feature broad wire range compatibility from 22 to 12 AWG and support high insulation withstand voltage of 2000V AC. Manufactured with durable materials and designed for temperatures from -40°C to +105°C, these terminal blocks are ideal for industrial control panels and wiring setups. Flexible configurations from 2 to 12 ways ensure versatile use in various electrical and automation systems. Purchase online today for dependable, high-quality connectivity solutions.
Order your Multicomp Series MC000181 terminal block today and give your projects the dependable quality they deserve, with flexible wiring options and robust insulation.
