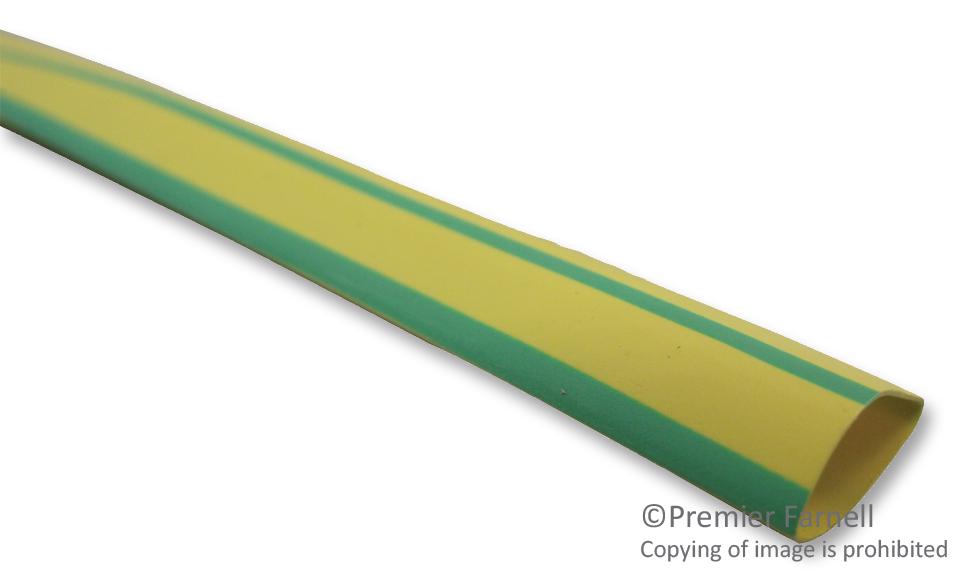

MULTICOMP PRO 15093 Flame-Retardant Heat Shrink Tubing
This flame-retardant polyolefin heat shrink tubing features dual green and yellow stripes, ideal for ground wire identification. It is flexible, flame-retardant, and exhibits a 2:1 shrink ratio with full recovery at 120°C. Designed for light-duty harnessing applications, it withstands temperatures from -55°C to +125°C, passes UL224 VW-1 and CSA22.2 No.198.1 standards, and maintains permanent color with ease of installation. It offers excellent electrical insulation, tensile strength of 10.4 MPa, and versatile sizes for various wiring needs. Suitable for reliable wire marking and protection in electrical systems.
MULTICOMP PRO 15093 Flame-Retardant Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Flammability: UL224 VW-1, CSA22.2 No.198.1 compliant
- Tensile Strength: 10.4 MPa (minimum)
- Ultimate Elongation: 200%
- Longitudinal Shrinkage: ±5%
- Dielectric Strength: ≥15 kV/mm
- Volume Resistivity: ≥1x10^14 Ω·cm
- Sizes: 1.6mm to 50.8mm internal diameter, various lengths, 5m to 100m reels
- RoHS Compliant
Buy the Green/Yellow Flame-Retardant Heat Shrink Tubing Series Polyolefin: 15093
Order Green/Yellow Flame-Retardant Heat Shrink Tubing online for dependable wire identification and insulation in electrical projects. This versatile tubing features a 2:1 shrink ratio, withstands temperatures from -55°C to +125°C, and complies with UL224 VW-1 and CSA standards. Available in a variety of sizes and lengths, it offers easy installation, permanent color, and excellent electrical properties suitable for harnessing and wire protection. Purchase now and ensure safe, efficient electrical wiring with ease.
Buy Green/Yellow Flame-Retardant Heat Shrink Tubing now and experience unmatched reliability and performance in electrical insulation and wire management.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15093?
You can click on the BUY or RFQ button to purchase 15093 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15093?
You can download the 15093 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15093?
MULTICOMP PRO
