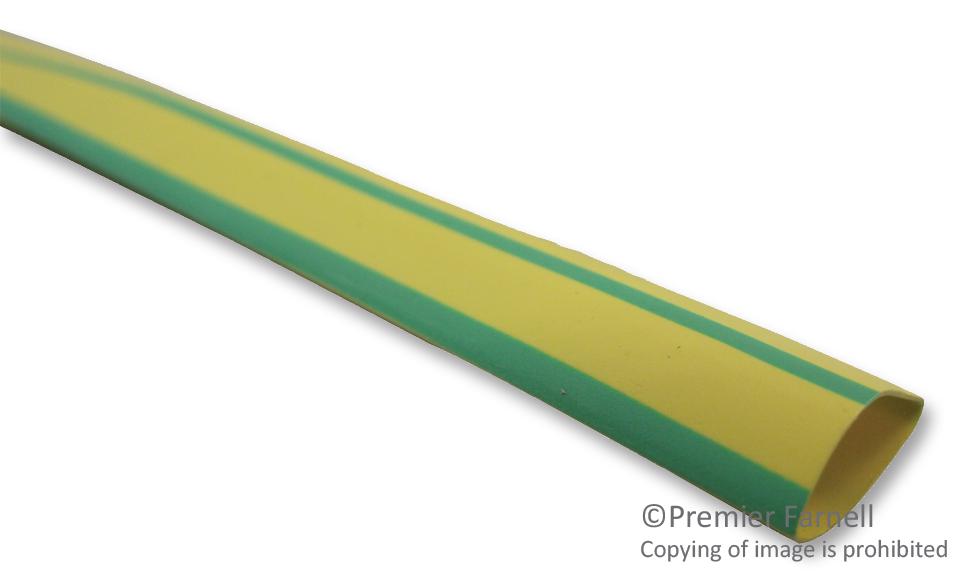

MULTICOMP PRO 15096 Polyolefin Heat Shrink Tubing
Green and yellow striped flame-retardant polyolefin heat shrink tubing is designed for easy identification of ground wires in electrical harnessing. Flexible, flame-retardant, and with permanent color properties, it provides reliable insulation for light-duty wiring and grounding applications. Operating between -55°C and +125°C, with a shrink ratio of 2:1, it ensures tight fit and durability. Approved standards include UL224 VW-1 and CSA22.2 No.198.1, offering excellent mechanical and electrical insulation performance with high tensile strength and dielectric properties for industrial wire management.
MULTICOMP PRO 15096 Polyolefin Heat Shrink Tubing Specifications:
- Material: Polyolefin
- Color: Green and yellow striped
- Flammability: UL224 VW-1, CSA22.2 No.198.1 approved
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Tensile Strength: Min 10.4 MPa
- Ultimate Elongation: Min 200%
- Dielectric Strength: Min 15 kV/mm
- Volume Resistivity: Min 1×10^14 Ω·cm
- Internal Diameter: 19 mm at supplied, 9 mm after recovery
- Wall Thickness: 0.8 mm at 19 mm size, 0.6 mm at 25 mm size
- Reel Lengths: 100 m, 50 m, 5 m options
- RoHS Compliant
- Approved: UL224 VW-1, CSA22.2 No.198.1
Buy the Green/Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing – Reliable Insulation for Industrial Applications
Enhance your wiring projects with high-quality flame-retardant green and yellow striped polyolefin heat shrink tubing. Designed for easy identification of ground wires, it offers excellent flexibility, flame resistance, and durable insulation properties. Operating efficiently in temperatures from -55°C to +125°C and featuring a shrink ratio of 2:1, this tubing is ideal for light-duty harnessing and grounding applications. Buy online today to ensure reliable, safe, and compliant wire insulation tailored for industrial and electrical use.
Buy Green/Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing now and enhance your electrical insulation with durable, flame-retardant properties designed for industrial wiring.
