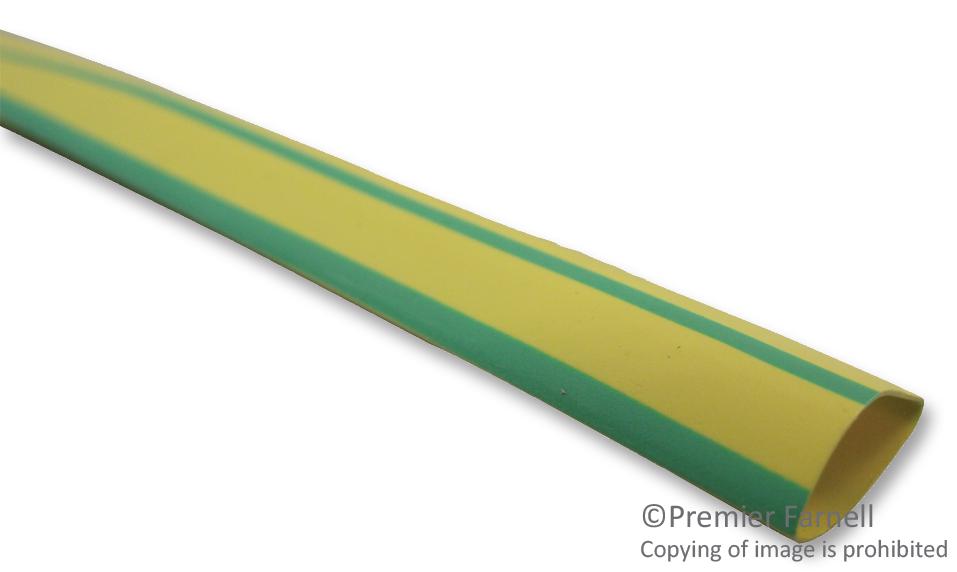

MULTICOMP PRO 15098 Heat Shrink Tubing
Green and yellow striped flame-retardant polyolefin heat shrink tubing designed for wire identification, especially for ground wires. This flexible, flame-retardant tubing with permanent color properties withstands temperatures from -55°C to +125°C, shrinks to 2:1 ratio at 70°C minimum, and fully recovers at 120°C. Approved under UL224 VW-1 and CSA22.2 No.198.1, it offers excellent tensile strength, elongation, dielectric strength, and corrosion resistance for reliable insulation and light-duty harnessing applications. Available in multiple sizes and reel lengths, compliant with RoHS standards.
MULTICOMP PRO 15098 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Flammability: UL224 VW-1, CSA22.2 No.198.1
- Tensile Strength: 10.4 MPa (min)
- Ultimate Elongation: 200% (min)
- Dielectric Strength: 15 kv/mm (min)
- Volume Resistivity: 1x10^14 Ω·cm (min)
- Dimensions (after recovery): 1.6mm to 50.8mm diameter sizes available
- Wall Thickness (after recovery): 0.28mm to 1mm depending on size
- Flexibility: No cracking after cold bend at -30°C, heat shock at 250°C
- RoHS Compliant
Buy the Green/Yellow Flame-Retardant Polyolefin Heat Shrink Tubing: 15098
Order Green and Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing online today and ensure reliable wire insulation. This flexible, flame-retardant tubing with a 2:1 shrink ratio offers excellent electrical and mechanical properties, withstanding temperatures from -55°C to +125°C. Approved by UL and CSA standards, it features permanent color coding for easy wire identification, corrosion resistance, and ease of installation. Available in various sizes and reel lengths, this RoHS-compliant tubing is ideal for light-duty harnessing and grounding wire applications, ensuring durability and safety in your projects.
Buy Green/Yellow Flame-Retardant Polyolefin Heat Shrink Tubing now and experience unmatched reliability and performance in wire identification and insulation.
