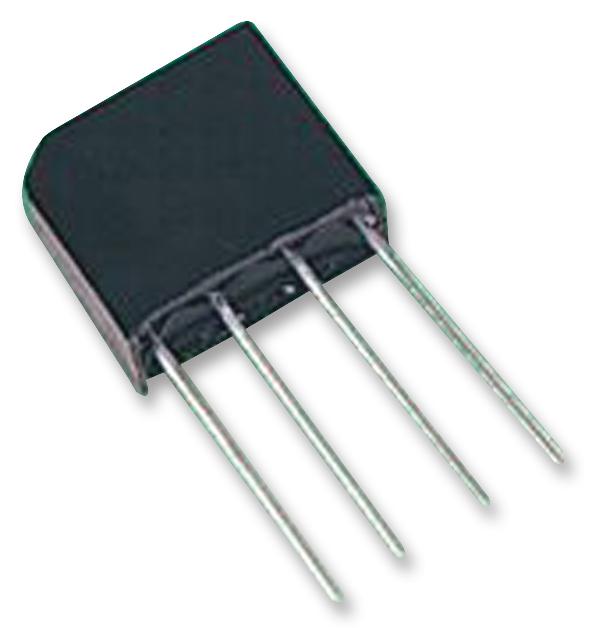

MULTICOMP PRO D6KB6L Bridge Rectifier
The D6KB6L is a glass passivated bridge rectifier designed for efficient conversion of AC to DC with high surge current capability. It features a UL-94 V-0 flame retardant epoxy case, plated leads for soldering, and is suitable for various mounting positions. With a reverse voltage of 600V and a forward current of 6A, it performs reliably under high temperatures from -55°C to +150°C. Ideal for power supplies, rectification, and industrial applications, the D6KB6L ensures durability with low forward voltage and high surge withstand capacity.
MULTICOMP PRO D6KB6L Bridge Rectifier Specifications:
- Reverse Voltage: 600 Volts
- Forward Current: 6 Amperes
- Maximum RMS Voltage: 420 V
- Maximum DC Blocking Voltage: 600 V
- Peak Forward Surge Current: 170 A
- Maximum Forward Voltage at 3A DC: 0.92 V
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance without heatsink: 55°C/W, with heatsink: 127°C/W
- Mounting: Any position with plated solderable leads
- Case: UL-94 V-0 flame retardant epoxy
- Terminal: Plated leads conforming to MIL-STD 202E, Method 208C
Buy the Buy Multicomp Pro Bridge Rectifier Part Number D6KB6L Online
Purchase the Multicomp Pro D6KB6L bridge rectifier online today. Designed for high surge current and high voltage applications, this component features glass passivation, UL-94 V-0 flame retardant epoxy, and plated lead terminals for easy soldering. It supports any mounting position and is perfect for power supply, industrial rectification, and electronic equipment. With a maximum reverse voltage of 600V and a forward current of 6A, the D6KB6L guarantees long-lasting performance, safe operation across a broad temperature range, and superior electrical characteristics for demanding applications.
Get Multicomp Pro D6KB6L today—built for high surge current capacity and reliable rectification in industrial power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO D6KB6L?
You can click on the BUY or RFQ button to purchase D6KB6L from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part D6KB6L?
You can download the D6KB6L datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of D6KB6L?
MULTICOMP PRO
