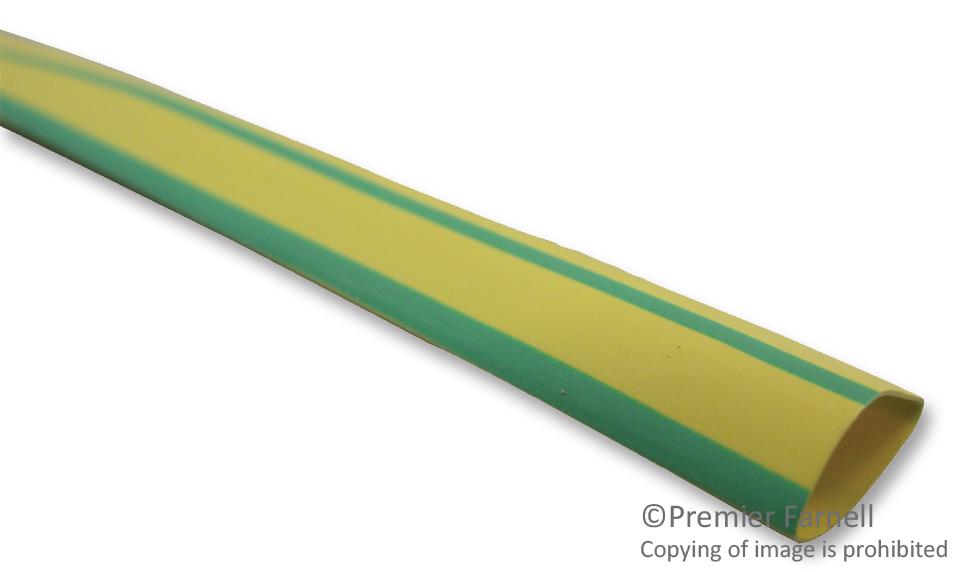

MULTICOMP PRO 15099 Heat Shrink Tubing
Green and yellow striped flame-retardant polyolefin heat shrink tubing offers flexibility, flame resistance, and permanent color, mainly used for wire identification and harnessing. With a shrink ratio of 2:1 and operating temperatures from -55°C to +125°C, it provides easy installation and reliable insulation. Approved by UL and CSA standards, it withstands heat aging, mechanical stress, and environmental conditions, making it ideal for grounding wires, light duty wiring, and electrical insulation in various industrial and commercial applications, ensuring durability and safety.
MULTICOMP PRO 15099 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Flammability: UL224 VW-1, CSA22.2 No.198.1
- Tensile Strength: 10.4 MPa (min)
- Ultimate Elongation: 200% (min)
- Dielectric Strength: 15 kV/mm (min)
- Volume Resistivity: 1x10^14 Ω-cm (min)
- Approvals: UL224, CSA22.2
- Wall Thickness: 0.2mm to 0.9mm depending on size
- Dimensions (Inner Diameter): 1.6mm to 50.8mm
Buy the Green/Yellow Series Flame-Retardant Polyolefin Heat Shrink Tubing: 15099
Enhance your electrical insulation and wire identification with our flame-retardant polyolefin heat shrink tubing. Designed for easy installation, it offers excellent flexibility and durability, with a shrink ratio of 2:1 that suits various wire sizes. Ideal for grounding wires, harnessing, and electrical protection, this tubing is UL and CSA approved, ensuring safety and compliance. Available in multiple sizes and provided in 5m or 100m reels, order online now for fast delivery and reliable performance in demanding electrical environments.
Order your Green/Yellow Flame-Retardant Polyolefin Heat Shrink Tubing 15099 today and ensure quick, reliable wire insulation and grounding in your projects.
