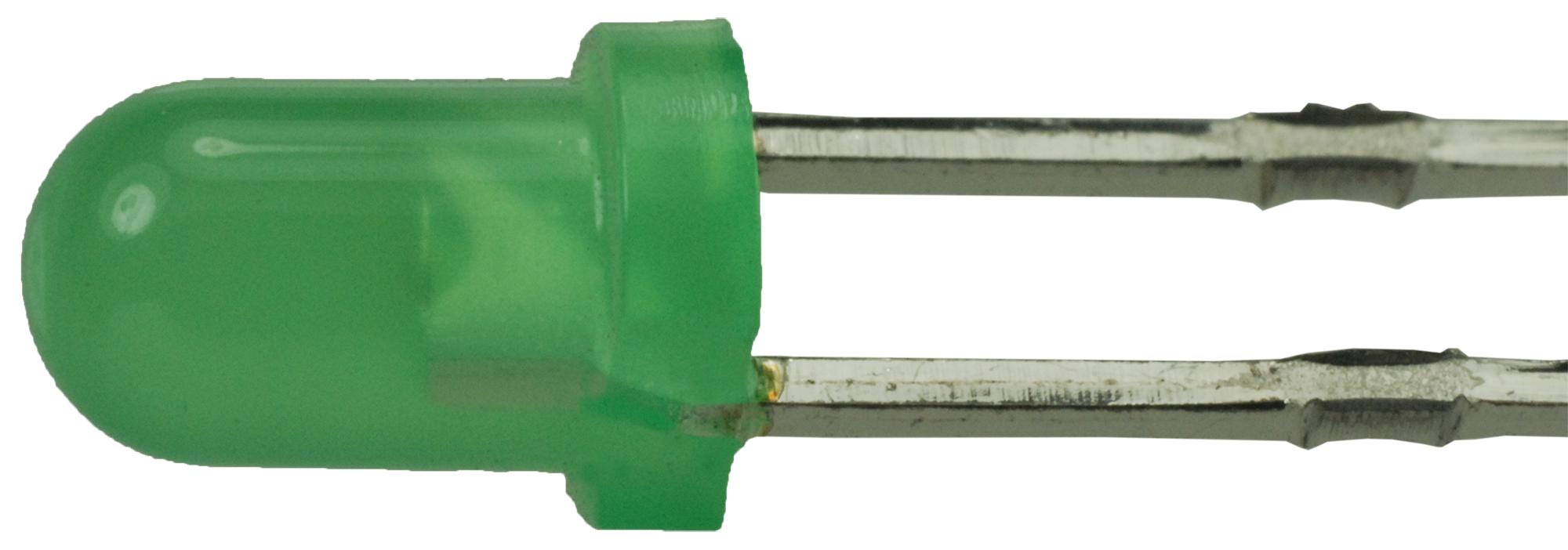

MULTICOMP PRO MCL034LGD Green Indicator LED
This 3mm green round LED provides reliable illumination with a peak wavelength of 568nm and a viewing angle of 76°. Suitable for various electronic applications, it features a luminous intensity of up to 4.5 med at 20mA, with a forward voltage between 1.5V and 2.5V. Rated for operation from -40°C to +85°C, it is RoHS compliant and features a GaP die material with a diffused green lens. Its dimensions are approximately 27mm in diameter with a lead length of 2.8mm, making it ideal for indicator lights, displays, and signaling devices.
MULTICOMP PRO MCL034LGD Green Indicator LED Specifications:
- Dice Material: GaP
- Emitted Colour: Green
- Lens Colour: Green Diffused
- Peak Wavelength: 568nm
- Viewing Angle: 76°
- Luminous Intensity: 3.2 med (typical at 20mA)
- Reverse Voltage: 5V
- Reverse Current: 10uA at VR=5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds, 4.6mm from body
- Forward Voltage: 1.5V to 2.5V at 20mA
- Peak Forward Current: 100mA (duty 1/10 at 1kHz)
- Power Dissipation: up to 85mW
- Dimensions: Diameter approximately 27mm (1.063 inches), lead length about 2.8mm
Buy the Buy Multicomp Green 3mm Part Number MCLO34LGD Online
Purchase the Green Indicator LED online and enjoy quick delivery, reliable performance, and quality assurance. This 3mm LED with a peak wavelength of 568nm is perfect for signaling, displays, and indicator lights. Featuring a 76-degree viewing angle and rated for -40°C to +85°C, it ensures durability and consistent brightness. RoHS compliant and with a maximum forward voltage of 2.5V at 20mA, this LED provides excellent visibility for various electronic projects. Order now to benefit from fast shipping and top-quality performance.
Buy Multicomp MCLO34LGD now and experience high visibility performance with reliable operation in electronic indicator applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034LGD?
You can click on the BUY or RFQ button to purchase MCL034LGD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034LGD?
You can download the MCL034LGD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034LGD?
MULTICOMP PRO
