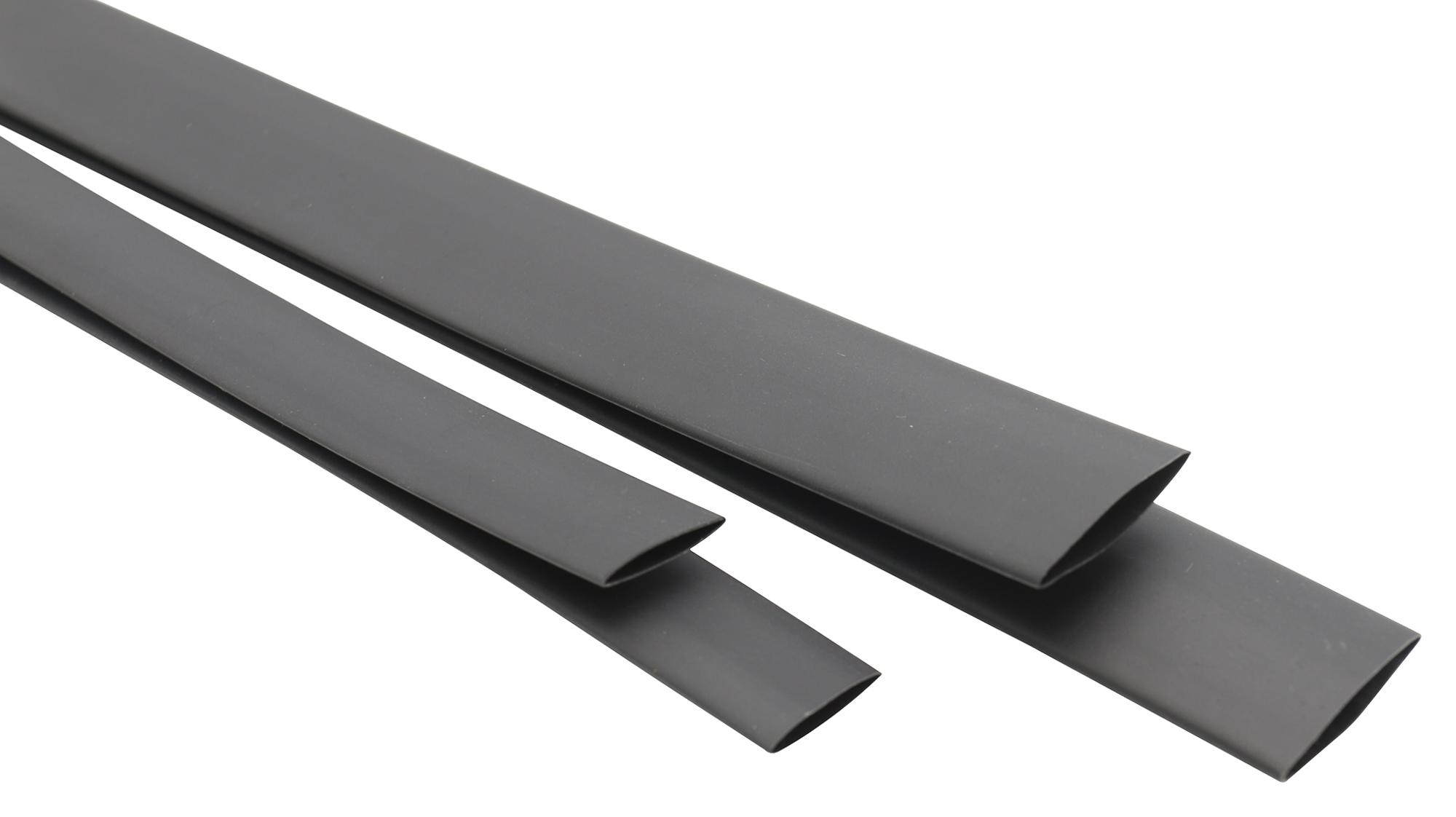

MULTICOMP PRO 15113 Heat Shrink Tubing
This flexible, halogen-free heat shrink tubing is made from modified radiation cross-linked polyolefin. It offers excellent mechanical and electrical performance with a low shrink temperature of 70°C, making it ideal for protecting temperature-sensitive components like PVC jacketed wires and cables. The tubing shrinks to a ratio of 2:1 at 125°C, with various colour options including clear, red, yellow, white, blue, brown, grey, and green. Its high tensile strength of 210.4 MPa and elongation of 2200% ensure durability and effective insulation for electronic and electrical applications.
MULTICOMP PRO 15113 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colours: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 15%
- Heat Aging Tensile Strength at 158°C for 168 hours: 27.3 MPa
- Dielectric Strength: 215kV/mm
- Volume Resistivity: 21x10¹⁰ Ω·cm
- Copper Stability: Pass
- Certifications: Meets Sony-SS-00259, RoHS Compliant, FMVSS302 Flammability Test Passed
- Size Examples: 12.7mm diameter, Wall Thickness 0.2mm, after recovery approximately 23.0mm diameter
- Material: Modified radiation cross-linked polyolefin, halogen-free
- Application: Insulation and protection for wires, cables, and electronic components
Buy the Farnell Series prO-POWER Heat Shrink Tubing: 15113
Purchase Farnell prO-POWER heat shrink tubing online today and ensure reliable insulation for your electronic and electrical projects. With excellent mechanical, electrical, and thermal properties, this versatile tubing shrinks at a low temperature and provides a secure fit for wires and cables. Its halogen-free, radiation cross-linked polyolefin material guarantees safety and durability. Available in multiple colours and sizes, it is ideal for protecting temperature-sensitive components, ensuring high-performance, safety compliance, and long-term reliability. Order now for quick delivery and superior quality.
Get Farnell prO-POWER 15113 heat shrink tubing today—designed for reliable insulation and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15113?
You can click on the BUY or RFQ button to purchase 15113 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15113?
You can download the 15113 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15113?
MULTICOMP PRO
