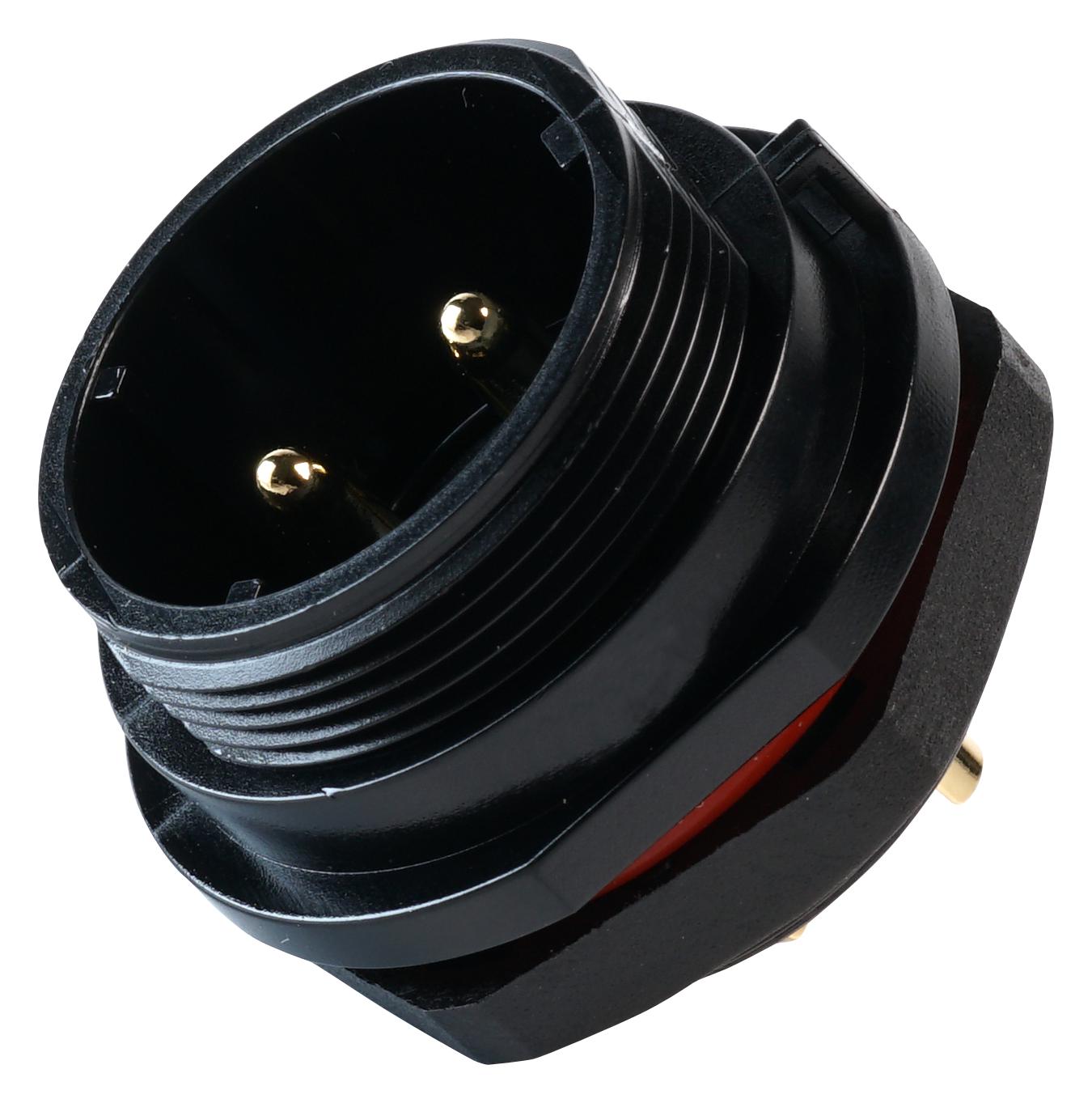

MULTICOMP PRO MP002598 IP68 Circular Connector
The MP-T21 IP68 series provides durable, weather-resistant connectors with threaded couplings and sealing for dust and water ingress protection. Suitable for indoor and outdoor use, these connectors come in panel, cable, and inline mounting options, supporting cable-to-panel or cable-to-cable connections. With models accommodating 2, 3, 4, 5, 7, 9, and 12 poles, they feature solder or screw termination and optional IP68 caps for enhanced sealing. Ideal for automation, industrial, medical, security, and measurement applications, ensuring reliable performance in harsh environments.
MULTICOMP PRO MP002598 IP68 Circular Connector Specifications:
- Rating: IP68 for dust and water resistance
- Shell Material: Nylon66 for panel shell, insert housing shell, locking, back, and compressing nuts
- Insert Material: PPS, Max. Temp. 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and screw options available for wire sizes up to 4/11 mm2
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30A for up to 5 contacts, 15A for 7 contacts, 5A for 9 and 12 contacts
- Rated Voltage: 500V AC for up to 5 contacts, 400V AC for 12 contacts
- Test Voltage: 1500V AC, 1-minute duration
- Contact Resistance: ≤ 1mΩ for most models
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Cable Range: 7mm to 12mm outer diameter
- Additional Features: Dust caps, compatible with various connector sets, RoHS compliant
Buy the Buy Multicomp IP68 Circular Connectors Part Number MP002598 Online
Purchase the Multicomp IP68 Circular Connector MP002598 online today to enjoy robust, weather-resistant connectivity. Designed for outdoor and industrial environments, this connector series offers threaded coupling, sealing, and multiple configurations supporting various pole counts. Easy to install with solder or screw termination, it supports high current and voltage ratings, ensuring reliable performance. Ideal for automation, security, and measurement systems, ordering online provides swift delivery and trusted quality for your critical applications.
Order your Multicomp series MP002598 IP68 waterproof connector today and ensure reliable, secure connections for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002598?
You can click on the BUY or RFQ button to purchase MP002598 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002598?
You can download the MP002598 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002598?
MULTICOMP PRO
