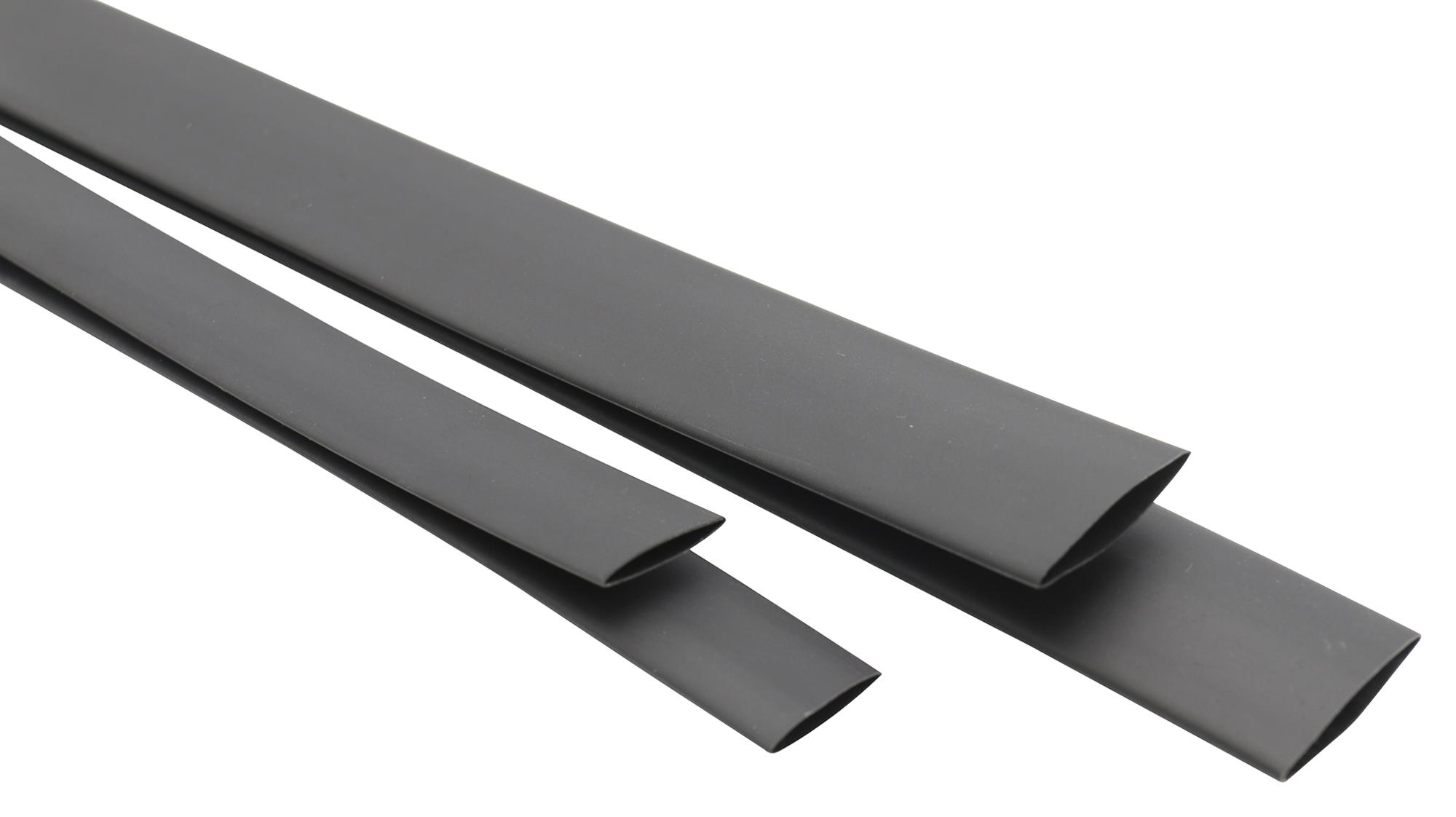

MULTICOMP PRO 15120 Heat Shrink Tubing
This flexible, halogen-free, polyolefin heat shrink tubing features a 2:1 shrink ratio, suitable for protecting sensitive components, cables, and wires. Made from radiation cross-linked polyolefin, it offers excellent mechanical and electrical performance, including high tensile strength of 210.4 MPa, elongation of 2200%, dielectric strength of 215 kV/mm, and compliance with RoHS. Designed for applications requiring quick, reliable shrinkage at 70°C, it resists heat aging, shock, and corrosion, making it ideal for electrical insulation, cable bundling, and environmental protection in complex wiring systems.
MULTICOMP PRO 15120 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Material: Radiation cross-linked polyolefin
- Tensile Strength: 210.4 MPa
- Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^15 Ohm-cm
- Flammability: Passes FMVSS302
- Color Options: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Dimensions: Max internal diameter varies from 1.5 mm to 50.8 mm depending on size; Wall thickness ranges from 0.2 mm to 0.5 mm
- Application: Electrical insulation, cable protection, environmental sealing
- RoHS compliant
Buy the Buy Premier Farnell Heat Shrink Tubing Part Number 15120 Online
Discover premium quality heat shrink tubing designed for electrical insulation and environmental protection. Featuring a 2:1 shrink ratio, high tensile strength, and excellent dielectric properties, this radiation cross-linked polyolefin tubing withstands extreme temperatures and mechanical stress. Its halogen-free formulation ensures safety without compromising flexibility, making it ideal for protecting sensitive components, cable bundling, and wiring applications. Available in multiple sizes and colors, it offers quick recovery at 70°C, RoHS compliance, and superior durability, all available for easy online purchase.
Order your Premier Farnell Series15120 high-quality heat shrink tubing today and protect your electrical projects with durable, reliable insulation.
