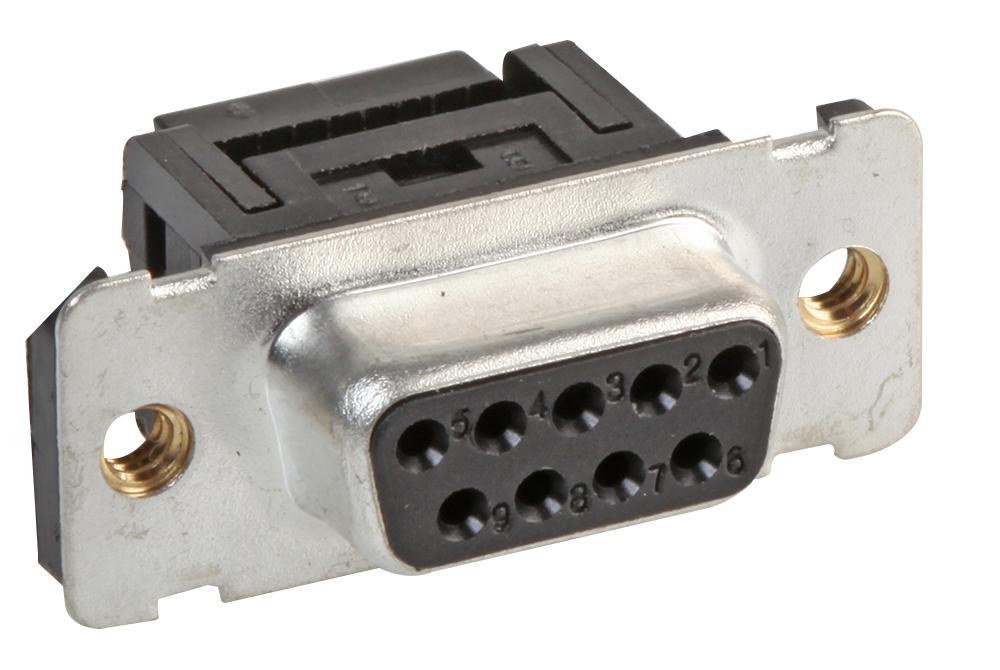

MULTICOMP PRO 8FTM09S30N4FEC D-Sub IDC Connector Housing
The MULTICOMP PRO 8FTM09S-30N4-FEC is a D-Sub IDC (Insulation Displacement Connector) connector housing, specifically designed for applications requiring robust and reliable connections. Constructed with a PBT housing reinforced with glass fiber, this connector offers excellent durability and insulation properties. The phosphor bronze contacts, plated with gold over nickel, ensure low contact resistance and corrosion resistance, vital for maintaining signal integrity. It is suitable for a range of industrial applications including data transmission, networking equipment, and instrumentation. The IDC design simplifies installation by allowing conductors to be connected without soldering, saving time and reducing potential errors. The connector supports AWG 26 and 28 stranded wire, making it versatile for various wiring configurations.
MULTICOMP PRO 8FTM09S30N4FEC D-Sub IDC Connector Housing Specifications:
- Current Rating: 1 ampere
- Min. Insulation Resistance: ≥1,000 MΩ (at 500 V dc)
- Dielectric Withstanding Voltage: 500V AC (for one minute)
- Operating Temperature: -55°C to +105°C
- Contact Resistance: ≤15mΩ
- Dielectric Material: PBT with glass-fibre reinforced
- Contact Material: Phosphor bronze
- Contact Plating: Gold over nickel
- Wire Size: AWG 26 and 28 stranded, 1.27mm conductor centre flat cable
- A Dimension: 24.99 mm
- B Dimension: 30.8 mm
- C Dimension: 11.08 mm
- D Dimension: 8.31 mm
- E Dimension: 16.1 mm
- F Dimension: 18.6 mm
- H Dimension: 16.33 mm
- I Dimension (Rear Mounting): 20.47 mm
- I Dimension (Front Mounting): 22.2 mm
