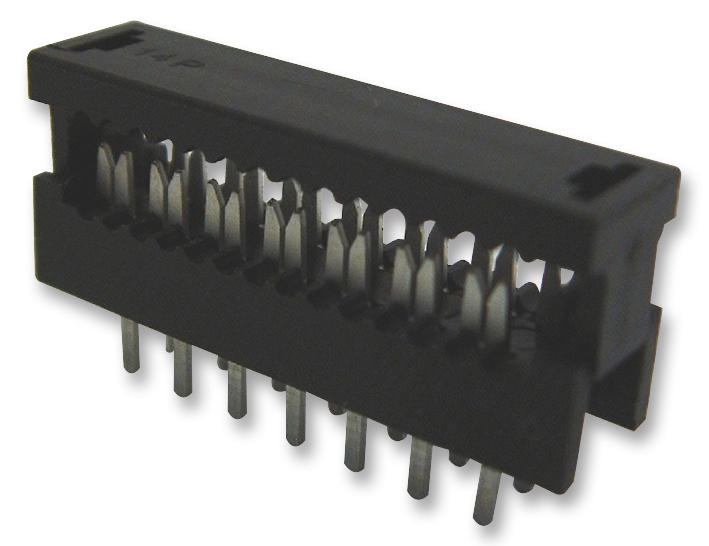

MULTICOMP PRO 1565525 2.54mm IDC Plug Connector
The MULTICOMP PRO 1565525 is a 2.54mm IDC (Insulation Displacement Connector) plug DIP (Dual In-line Package) type connector. This connector is designed for secure and reliable connections in a variety of electronic applications, particularly in prototyping and low-volume production. It utilizes insulation displacement technology, allowing for easy termination without the need for separate wire stripping. The gold-plated contacts ensure low contact resistance and excellent signal transmission, while the PBT insulator provides robust insulation and durability. This connector is suitable for applications in industrial control systems, instrumentation, and consumer electronics where a compact and reliable connection is required.
MULTICOMP PRO 1565525 2.54mm IDC Plug Connector Specifications:
- Current Rating: 1 A AC / DC
- Voltage Rating: 30V AC / DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500 V AC / minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT, black
- Contact Material: Copper alloy
- Contact Finish: Selective gold plated
- Positions: 20
- A(mm): 30.74
Buy the 1565525 MULTICOMP PRO 2.54mm IDC Plug Connector | myMectronic
Purchase the MULTICOMP PRO 1565525 2.54mm IDC Plug Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1565525?
You can click on the BUY or RFQ button to purchase 1565525 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1565525?
You can download the 1565525 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1565525?
MULTICOMP PRO
