MULTICOMP PRO PP002118 Electrical Wiring Cable

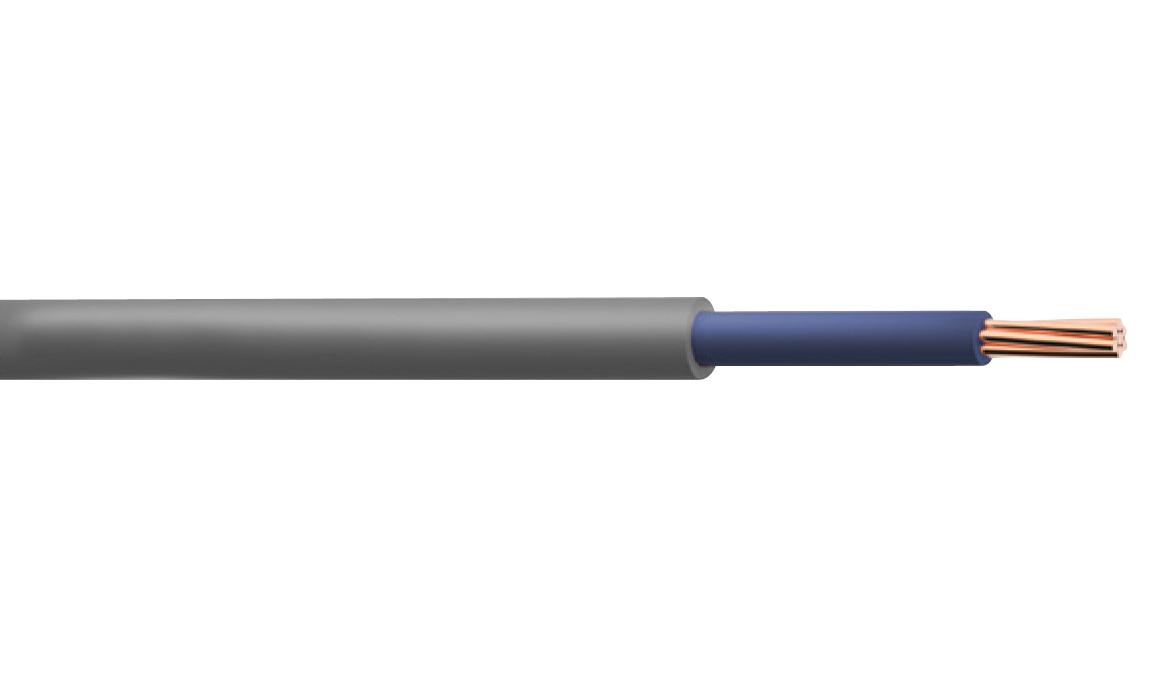

This multicomp-pro cable is designed for fixed installation in dry or damp environments, ideal for domestic, light industrial wiring, and smart meter connections. Made with stranded copper conductors and PVC insulation, it features a grey sheath with blue or brown insulation colors. Rated at 300/500V and suitable for temperatures from -15°C to +70°C, it complies with BS 6004, BS EN/IEC 60332-1-2 standards. Available on 50m reels or per meter, it ensures safe, reliable electrical connections in various wiring applications.
MULTICOMP PRO PP002118 Electrical Wiring Cable Specifications:
- Voltage Rating (Uo/U): 300/500V
- Temperature Rating: Fixed: -15°C to +70°C
- Minimum Bending Radius: 4 x overall diameter
- Conductor: Class 2 stranded copper according to BS EN 60228
- Insulation: PVC Type Tl1 BS EN 50363
- Sheath: PVC Type 6 BS EN 50363
- Cross-Sectional Area: 25 mm²
- Nominal Diameter of Conductor: 5.9 mm
- Insulation Thickness: 1.2 mm
- Overall Diameter: 11.1 mm
- Resistance: 0.727 ohm/km (copper conductor)
- Applicable Standards: BS 6004, BS EN/IEC 60332-1-2
- Temperature Rating: -15°C to +70°C
- Sheath Colour: Grey
- Insulation Colour: Blue, Brown
- Availability: Reels of 50m or per metre
Buy the Multicomp-pro PP002118 – Reliable Wiring Cable for Industrial Applications
Enhance your electrical installations with the robust and versatile multicomp-pro wiring cable, designed for dry and damp environments. Made with high-quality copper conductors and PVC insulation, this cable offers excellent flexibility and durability. It supports voltages up to 500V and temperature ranges from -15°C to +70°C, ideal for indoor wiring, domestic, and light industrial applications. Available on reels of 50 meters or by the meter, it ensures quick, reliable online ordering for professional or DIY electrical projects.
Order your Multicomp-pro BS 6004 cable PP002118 today and secure durable, compliant wiring for indoor electrical installations and smart meter connections.
