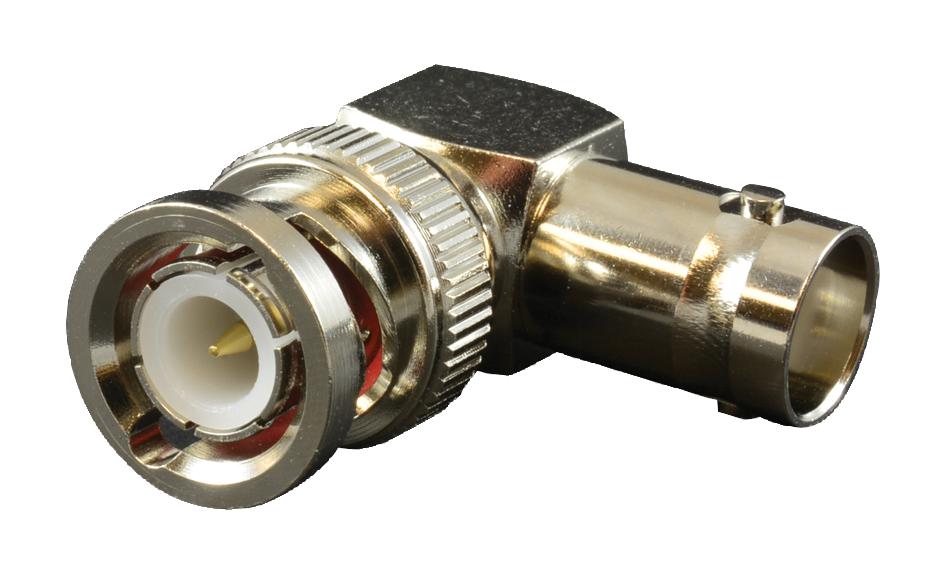

MULTICOMP PRO 1577A Right Angle Adapter
The MULTICOMP PRO 1577A BNC right angle adapter is a crucial component in RF systems, providing a 90-degree connection for space-saving applications. Its robust brass construction with nickel plating ensures excellent signal integrity and longevity. The adapter's 50Ω impedance and DC-4GHz frequency range make it suitable for a wide range of applications, including test and measurement equipment, broadcast systems, and network infrastructure. The silicone gasket provides a secure and environmentally sealed connection.
MULTICOMP PRO 1577A Right Angle Adapter Specifications:
- Frequency Range: DC-4GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.3 Max. @ 1GHz
- Shell Material: Brass (JIS-C3604)
- Centre Contact Material: Brass (JIS-C3604)
- Operating Temperature Range: -40°C to +60°C
- Shell Finish: Nickel 100µʺ Min.
- Body I Material: Brass
- Insulation Material: POM
- Gasket Material: Silicone
- Body II Material: Brass
- Centre Contact Finish: Gold
- Body III Material: Brass
Buy the 1577A MULTICOMP PRO BNC Right Angle Adapter | myMectronic
Purchase the MULTICOMP PRO 1577A BNC Right Angle Adapter securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1577A?
You can click on the BUY or RFQ button to purchase 1577A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1577A?
You can download the 1577A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1577A?
MULTICOMP PRO
