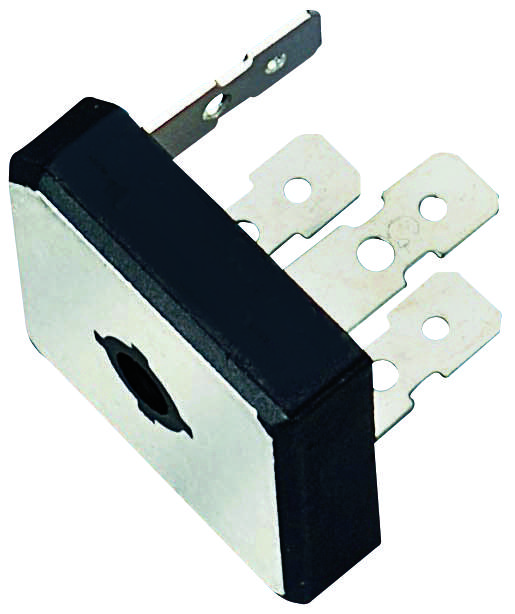

MULTICOMP PRO GBPC3506 Bridge Rectifier
The GBPC3506 is a robust single-phase bridge rectifier designed for power supply and mains rectification. It features a plastic body with an integrally molded heatsink for optimal heat dissipation and low thermal resistance. The device includes solderable terminals compliant with MIL-STD-202, Method 208, and offers high isolation voltage exceeding 2500V from case to lead. It can handle a maximum RMS voltage of 420V, a DC blocking voltage of 600V, and surges up to 400A. This rectifier ensures reliable performance in industrial and electronic applications requiring high current and voltage stability.
MULTICOMP PRO GBPC3506 Bridge Rectifier Specifications:
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Peak Forward Surge Current: 400A
- Isolation Voltage: >2500V from case to lead
- Thermal Resistance: Approx. 1.5°C/W
- Solderable Terminals: MIL-STD-202, Method 208
- Body Material: Plastic with molded heatsink
- Operating Temperature Range: -50°C to +150°C
- Lead Length: About 9.5 mm (0.375 inches)
- Max Forward Voltage at 11V: 17.5A, typical
- Surge Overload Ratings: 300 – 400A
Buy the Buy Power Components Bridge Rectifier Part Number GBPC3506 Online
Secure your power circuits with the high-capacity Bridge Rectifier rated for 600V and 400A surge current. Engineered with an integrated heatsink for maximum heat dissipation, this rectifier ensures superior performance and durability. Its solderable terminals meet MIL-STD-202 standards for secure connections, providing high isolation voltage over 2500V. Ideal for industrial, electronic, and power supply applications, the GBPC3506 guarantees efficiency, safety, and longevity in demanding environments. Order online today for fast delivery and trusted quality.
Buy Power Components GBPC3506 now and experience unmatched reliability and performance in your power supply designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC3506?
You can click on the BUY or RFQ button to purchase GBPC3506 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC3506?
You can download the GBPC3506 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC3506?
MULTICOMP PRO
