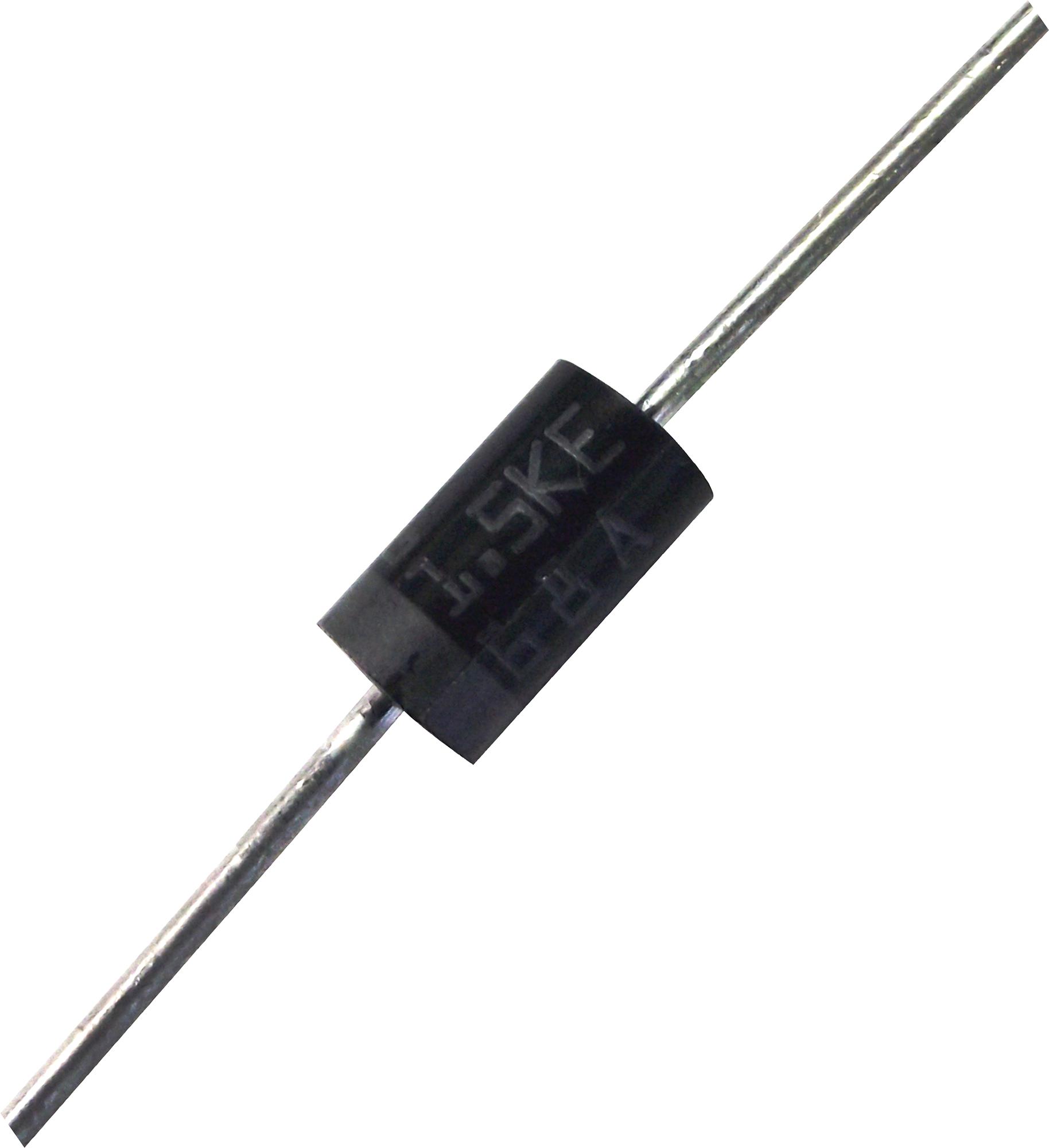

MULTICOMP PRO 15KEG160CA TVS Diode Bidirectional
The MULTICOMP PRO 1.5KEG series are bidirectional transient voltage suppression (TVS) diodes designed to protect sensitive electronic components from voltage spikes and surges. These diodes feature glass passivation for improved reliability, low leakage current, and excellent clamping capability. They are ideal for applications in power supplies, telecommunications equipment, automotive electronics, and industrial control systems. The 1.5KEG series offers a wide range of reverse standoff voltages to accommodate various protection requirements. Their fast response time ensures quick clamping action, minimizing the risk of damage to downstream circuitry.
MULTICOMP PRO 15KEG160CA TVS Diode Bidirectional Specifications:
- Peak Power Dissipation at Ta= 25°C Tp= 1ms: 1500W
- Peak Forward Surge Current, 8.3mS Single Half Sine-Wave: 200A
- Steady State Power Dissipation at Tl = 75°C: 5W
- Maximum Instantaneous Forward Voltage: See Note 3
- Operating Junction Temperature Range: -55 to +150°C
- Storage Temperature Range: -55 to +175°C
- Reverse Standoff Voltage: 136V
- Breakdown Voltage at IT (Min): 152V
- Breakdown Voltage at IT (Max): 168V
- Max Reverse Leakage at Vr: 5μA
- Max Clamping Voltage at Ippm: 219V
- Max Peak Pulse Surge Current: 6.8A
- Max Voltage Temp: 0.108mV/°C
- Device Type: Bidirectional
