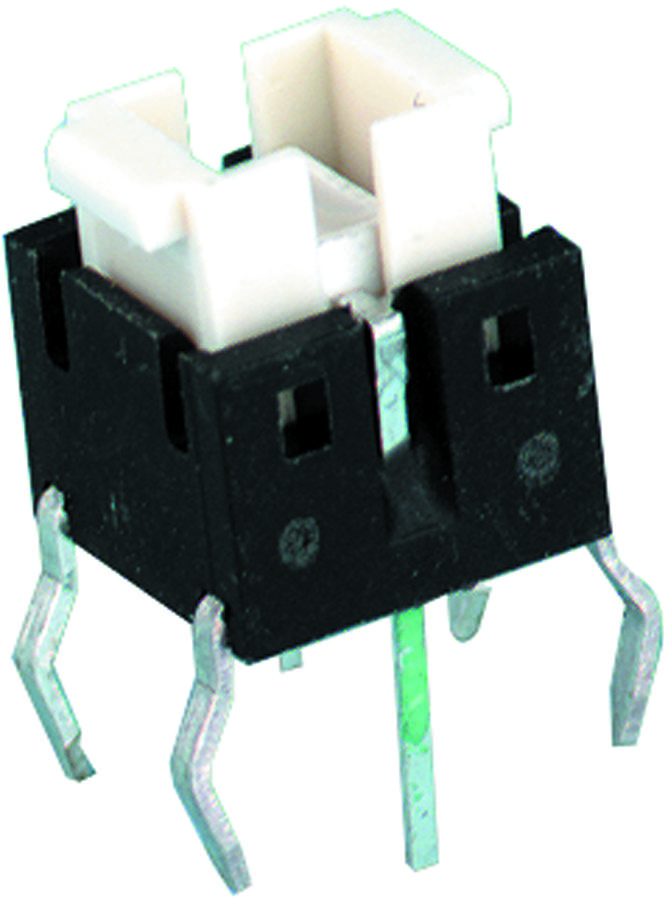

MULTICOMP PRO TLL62BY Miniature Tactile Switch
This tactile switch offers a sharp click with positive tactile feedback, making it ideal for user interface applications. Its ultraminiature, lightweight design makes it suitable for space-constrained devices. The switch features a SPST contact arrangement, high operational durability of over 200,000 cycles, and reliable performance across temperature ranges from -25°C to +70°C. With a contact resistance of max 100mΩ, insulation resistance of max 100MΩ, and dielectric strength of 500V DC, it is crafted from high-quality stainless steel, brass with silver plating, and high-temperature thermoplastic materials. Recommended for through-hole mounting with operating force of 50gf, and a stroke of 0.4mm, it ensures dependable tactile feedback and durability for various electronic projects.
MULTICOMP PRO TLL62BY Miniature Tactile Switch Specifications:
- Switch Terminals: Through Hole
- External Length / Height: 20.2 +/-0.1mm
- External Width: 6.1mm
- Height: 7mm
- No. of Electrical Operations: 200,000 minimum
- Series: TLL
- Switch Operation: SPST
- Operation Force: 50gf
- Stroke: 0.4mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 200,000 cycles minimum
- Rating: 50mA, 12V DC
- Contact Resistance: Max 100mΩ
- Insulation Resistance: Max 100MΩ
- Dielectric Strength: 500V DC
- Contact Arrangement: SPST
- Contact Disc Material: Stainless Steel
- Terminal Material: Brass with Silver Plating
- Base Material: LCP high-temperature thermoplastic
- Stem Material: Nylon high-temperature thermoplastic
- Soldering Process: Wave Soldering at 500°F for max 5 seconds, Hand Soldering at 608°F (320°C) for approximately 2 seconds
Buy the Buy multicomp Pro TLL62BY Part Number TLL62BY Online
Discover the reliable performance of the miniature Tactile Switch, with quick feedback and long-lasting durability. Perfect for space-efficient designs, it offers high electrical life and stable operation. Purchase online today to benefit from fast delivery and genuine quality, ensuring your electronic projects meet industry standards for durability and tactile response. Whether for consumer devices or industrial controls, this switch provides dependable tactile feedback, high temperature resilience, and ease of installation, making it the optimal choice for your application needs.
Order your multicomp Series TLL62BY tactile switch today and ensure reliable, high-durability switching for your electronic projects.
