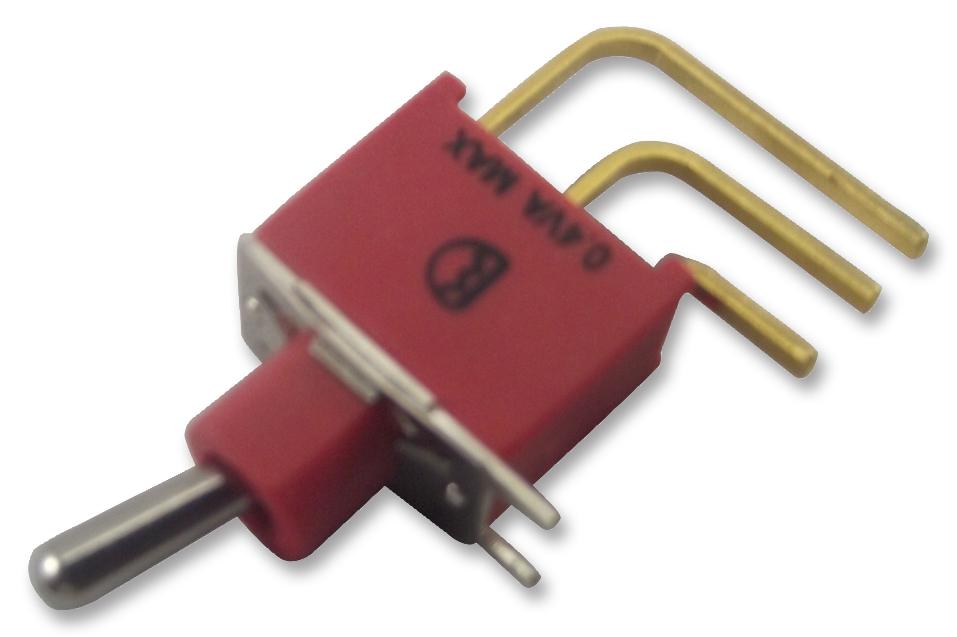

MULTICOMP-PRO 1AS1T2B4M7RE Sealed Toggle Switch
The sealed toggle switch from the 1A Series by Multicomp Pro is a high-quality, RoHS-compliant device suitable for various electrical applications. Featuring a durable glass filled nylon case and brass chrome-plated actuator with internal O-ring seal, it offers reliable switching with a mechanical life of 30,000 cycles. The switch supports a contact rating of 0.4 Volt-Amps at 20V, with gold-plated contacts, and insulates resistance over 1,000 MΩ. It is designed for operation between -30°C and 85°C, with options for snap-in or PCB mounting, making it ideal for industrial control systems, automation, and machinery interfaces.
MULTICOMP-PRO 1AS1T2B4M7RE Sealed Toggle Switch Specifications:
- Contact Rating: 0.4 Volt-Amps at 20V (AC/DC)
- Mechanical Life: 30,000 cycles
- Contact Resistance: 10mΩ initial @ 2-4V DC, 100mA gold contacts
- Insulation Resistance: > 1,000 MΩ
- Dielectric Strength: 1,000 Vrms min.
- Operating Temperature: -30°C to 85°C
- Material: Glass filled nylon 6/6 case, brass chrome-plated actuator, brass or steel switch support
- Switch Function: SPDT, standard for M7 terminations, with options for lift-off, snap-in, or PCB mounting
- Dimensions: Length approximately 0.87 inches (22mm), width 0.44 inches (11mm), height varies depending on actuator and termination options
- Soldering: Manual soldering at 350°C for 5 sec, wave soldering recommended at 260±5°C for max 5 sec
Buy the Buy Multicomp Pro Sealed Toggle Switch Part Number 1AS1T2B4M7RE Online
Order the reliable and RoHS-compliant Sealed Toggle Switch from Multicomp Pro online today. Crafted with durable glass-filled nylon and brass components, this switch ensures high performance in industrial, automation, and control system applications. Its gold-plated contacts provide excellent conductivity and corrosion resistance, while the operating temperature range of -30°C to 85°C allows versatile use across various environments. Easy to install with options for snap-in or PCB mounting, this switch is ideal for engineers seeking durability and precision in their electrical designs.
Get Multicomp Pro 1AS1T2B4M7RE today—designed for reliable switching, robust construction, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 1AS1T2B4M7RE?
You can click on the BUY or RFQ button to purchase 1AS1T2B4M7RE from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 1AS1T2B4M7RE?
You can download the 1AS1T2B4M7RE datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 1AS1T2B4M7RE?
MULTICOMP-PRO
