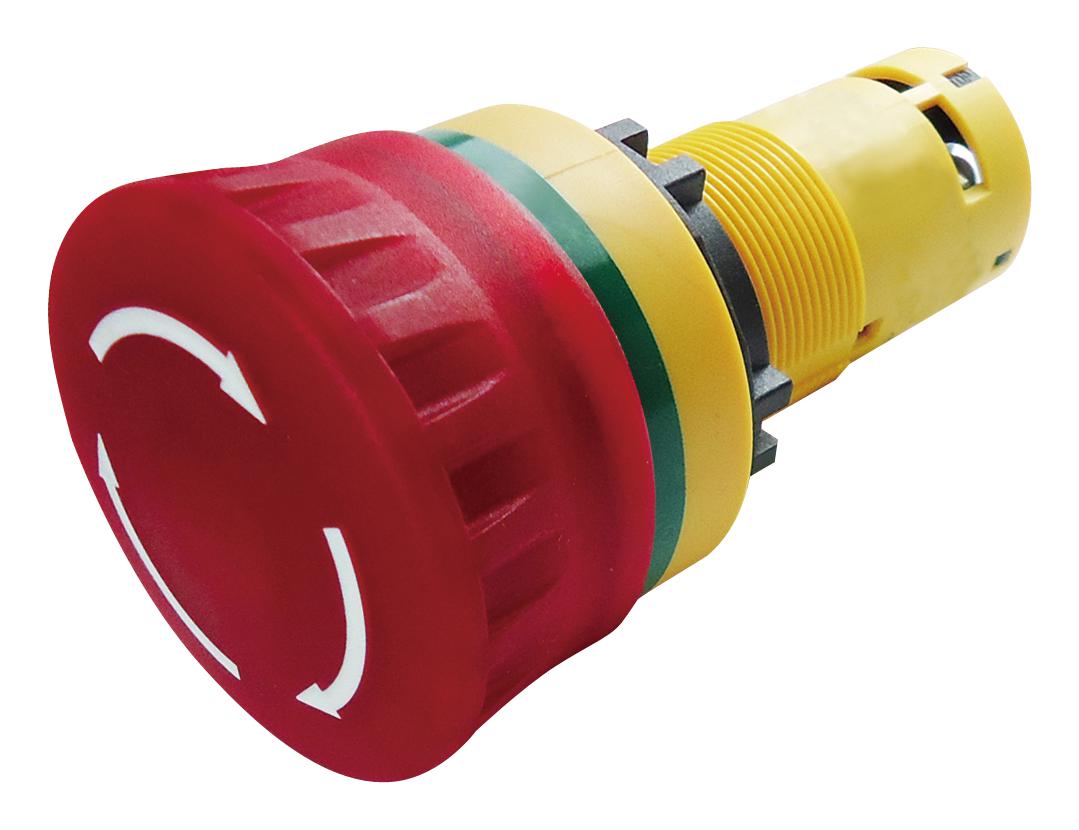

MULTICOMP PRO MCC2ELVE10QM3R Emergency Stop Switch
The illuminated emergency stop switch features a durable 40mm mushroom head with a 1NO contact configuration, suitable for industrial safety applications. It operates reliably with a mechanical life of over 0.25 million operations and an electrical life exceeding 0.1 million operations. The switch supports a rated insulation voltage of 300V and thermal current of 5A. It has an IP65 protection rating, making it resistant to dust and water. Designed for panel thicknesses between 0.8mm and 12mm, it offers versatile mounting options with LED illumination for enhanced visibility and safety.
MULTICOMP PRO MCC2ELVE10QM3R Emergency Stop Switch Specifications:
- Mechanical Life: >0.25 million operations
- Electrical Life: >0.1 million operations
- Rated Insulation Voltage: 300V
- Rated Thermal Current: 5A
- Insulation Resistance: 100MQ
- Dielectric Strength: 2000V AC, 1 minute
- Panel Thickness: 0.8mm to 12mm
- Degree of protection: IP65
- Operating Temperature: 1°C to 55°C
- Storage Temperature: 5°C to +85°C
- Contact Ratings (B300/R300): 5A at 12V/30V/125V/250V
- AC Resistive Load (AC-12): 5A, Operating Voltage 12V to 250V
- Inductive Load (AC-15): 3A at 250V
- DC Resistive Load (DC-12): 1A at 12V, 0.32A at 24V
- Inductive Load (DC-13): 1A at 12V, 0.22A at 24V
- Contact Operator Position: Mounting, Free Push
- Configuration: 1 NO, 2 LED
- Dimensions: 40mm diameter, hole diameter 33mm
Buy the Multicomp Series Emergency Stop: MCC2E-LVE10QM3R
Order the illuminated emergency stop switch today to ensure safety and reliability in industrial environments. Featuring a durable 40mm mushroom head with reliable electrical and mechanical lifespan, IP65 protection against dust and water, and easy mounting on panels from 0.8mm to 12mm thick. Its LED illumination enhances visibility, providing quick access and operation during emergencies. Designed for a variety of voltages and loads, this switch is essential for safety systems, machinery controls, and automation setups. Buy online now for fast delivery and peace of mind in your safety implementation.
Get Multicomp MCC2E-LVE10QM3R today—built for industrial safety and durability with illuminated features and IP65 protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCC2ELVE10QM3R?
You can click on the BUY or RFQ button to purchase MCC2ELVE10QM3R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCC2ELVE10QM3R?
You can download the MCC2ELVE10QM3R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCC2ELVE10QM3R?
MULTICOMP PRO
