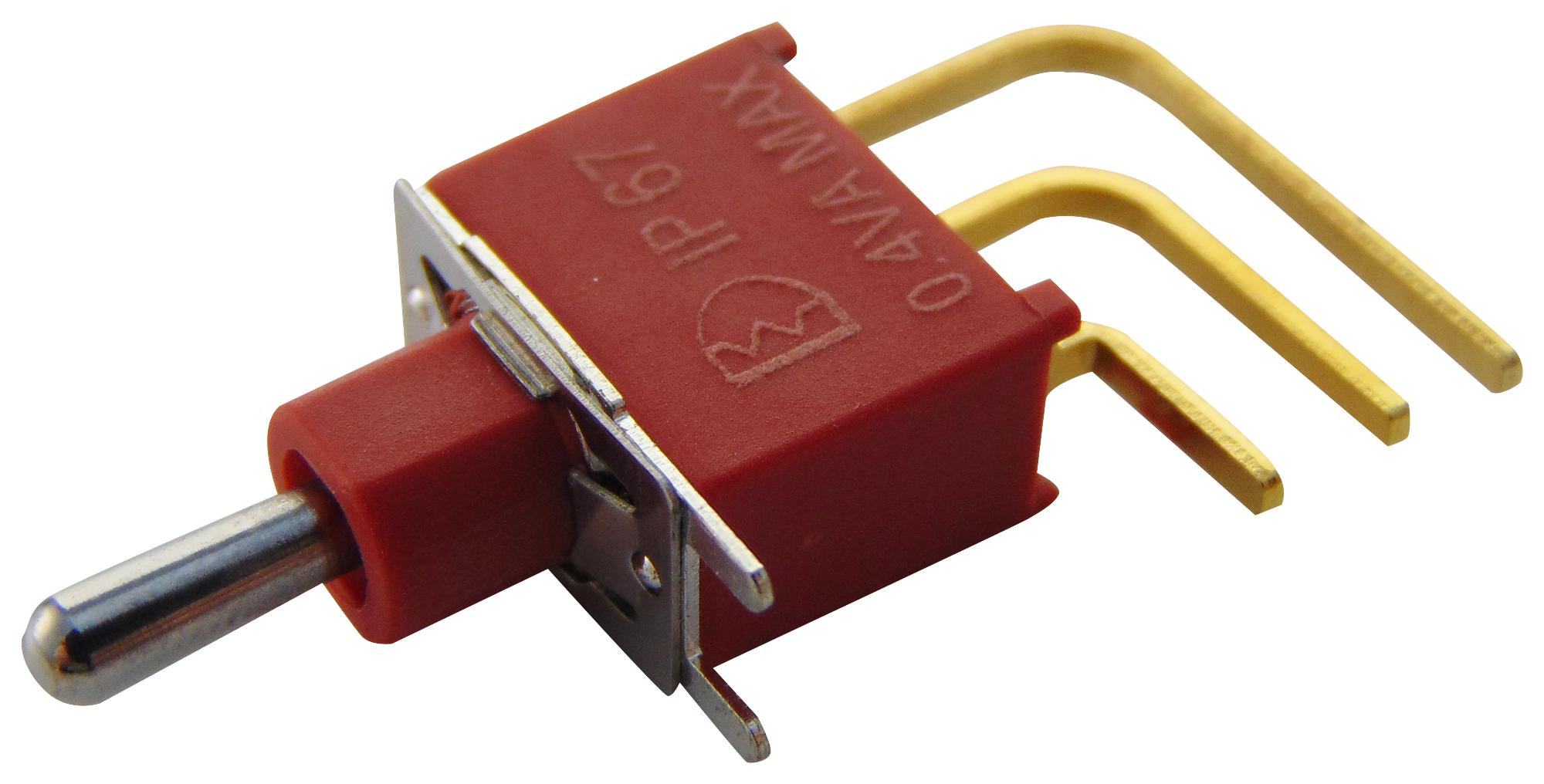

MULTICOMP-PRO 1AS3T2B4M7RE Sub-Miniature Toggle Switch
This sub-miniature toggle switch offers reliable PCB mounting with various contact configurations including SPDT and DPDT options. Designed with epoxy-sealed actuators and high-quality materials such as PVC and stainless steel, it supports a wide operating temperature from -30°C to +85°C. Its mechanical life spans up to 30,000 cycles, with a contact resistance of 10mQ max. Suitable for applications requiring compact size, durable performance, and RoHS compliance, these switches are ideal for electronic control systems demanding precision and longevity.
MULTICOMP-PRO 1AS3T2B4M7RE Sub-Miniature Toggle Switch Specifications:
- Contact Rating: 0.4 volt-amps at 20V max. (AC/DC)
- Mechanical Life: 30,000 cycles
- Contact Resistance: 10mQ max. at 2 to 4V DC
- Insulation Resistance: 1,000MQ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Glass filled nylon 66, heat stabilized, brass, stainless steel, copper alloy
- Case and Bushing: Brass, chrome plated
- Actuator: PVC or stainless steel
- Pole Options: SPDT and DPDT
- Mounting: PCB, vertical or horizontal, right angle
- Soldering Process: Manual (350°C for 5s), wave (260°C +5°C, 5s immersion)
- Dimensions vary with model, approximately 12.7 mm (0.5 inches) in size
- Seal: Epoxy seal for environmental protection
- RoHS Compliant: Yes
Buy the Multicomp Series Sub-Miniature Toggle Switch: 1AS3T2B4M7RE
Enhance your electronic design with this reliable sub-miniature toggle switch. Featuring epoxy-sealed actuators, various contact options, and high durability, it ensures consistent operation across applications. Easy PCB mounting with vertical or horizontal configurations, supported by RoHS compliance and a 30,000 cycle lifespan, makes it ideal for compact control panels and automated systems. Invest in this precision switch today and enjoy seamless integration, long-lasting performance, and peace of mind in your electronic solutions.
Buy Multicomp Pro series sub-miniature toggle switch 1AS3T2B4M7RE now and experience unmatched reliability and performance in your electronic projects.
