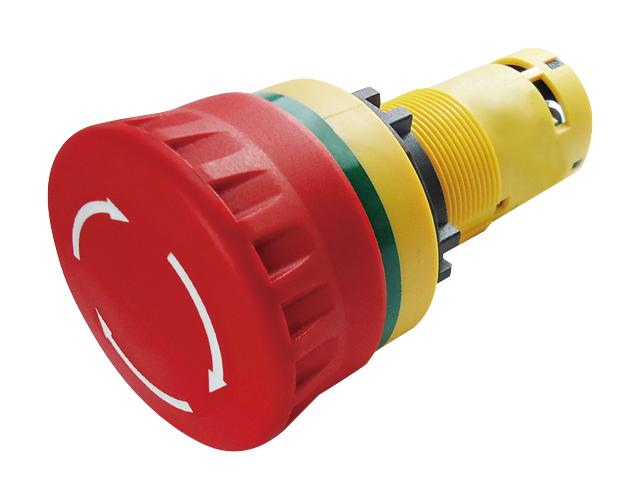

MULTICOMP-PRO MCC2EBVE11R Emergency Stop Switch
The emergency stop switch is a non-illuminated, 40mm safety device designed for quick shutdown in industrial applications, featuring a red push or pull operation with a variety of contact configurations including 1NO+1NC, 2NC, or 2NO. It complies with IP66, Type 4X, and Type 13 ratings, suitable for indoor use with panel thicknesses of 0.8mm to 12mm. It offers durable mechanical operation with 20.25 million cycles, electrical life over 0.1 million cycles, and rated currents up to 5A, ensuring reliable safety control in manufacturing environments.
MULTICOMP-PRO MCC2EBVE11R Emergency Stop Switch Specifications:
- Mechanical Life: 20.25 million operations
- Electrical Life: >0.1 million operations
- Electrical Durability: 1,000,000 cycles AC-15, 230V/1.6A; 1,000,000 cycles DC-13, 24V/0.6A
- Rated Insulation Voltage: 300V
- Rated Thermal Current: 5A
- Contact Resistance: 100mΩ max. (at 1A, 6-8V DC)
- Insulation Resistance: 100MΩ (at 500V DC)
- Dielectric Strength: 2000V AC for 1 min
- Panel Thickness Range: 0.8mm to 12mm
- Degree of Protection: IP66, Type 4X, Type 13
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 45% to 85% RH
- Wire Diameter: 16~26 AWG, 0.2~1.5mm²
- Stripping Length: 8mm
- Torque: 1N·m
- Contact Ratings: B300/R300, operating voltages up to 250V AC, 5A rated current
Buy the Buy Multicomp Emergency Stop Switch Part Number MCC2EBVE11R Online
Secure your safety systems with the high-quality Multicomp emergency stop switch, featuring durable construction, multiple contact options, and IP66 protection. Designed for easy installation with panel thickness compatibility of 0.8mm to 12mm, it provides reliable operation across industrial environments. With a mechanical life of over 20 million cycles and electrical durability exceeding 0.1 million cycles, this switch guarantees dependable safety shutdowns. Its robust build and compliance with safety standards make it an essential component for automation and safety control systems. Buy online now to upgrade your safety solutions efficiently and confidently.
Order your Multicomp Series MCC2EBVE11R emergency stop switch today and ensure safe, reliable shutdown capability in your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCC2EBVE11R?
You can click on the BUY or RFQ button to purchase MCC2EBVE11R from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCC2EBVE11R?
You can download the MCC2EBVE11R datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCC2EBVE11R?
MULTICOMP-PRO
