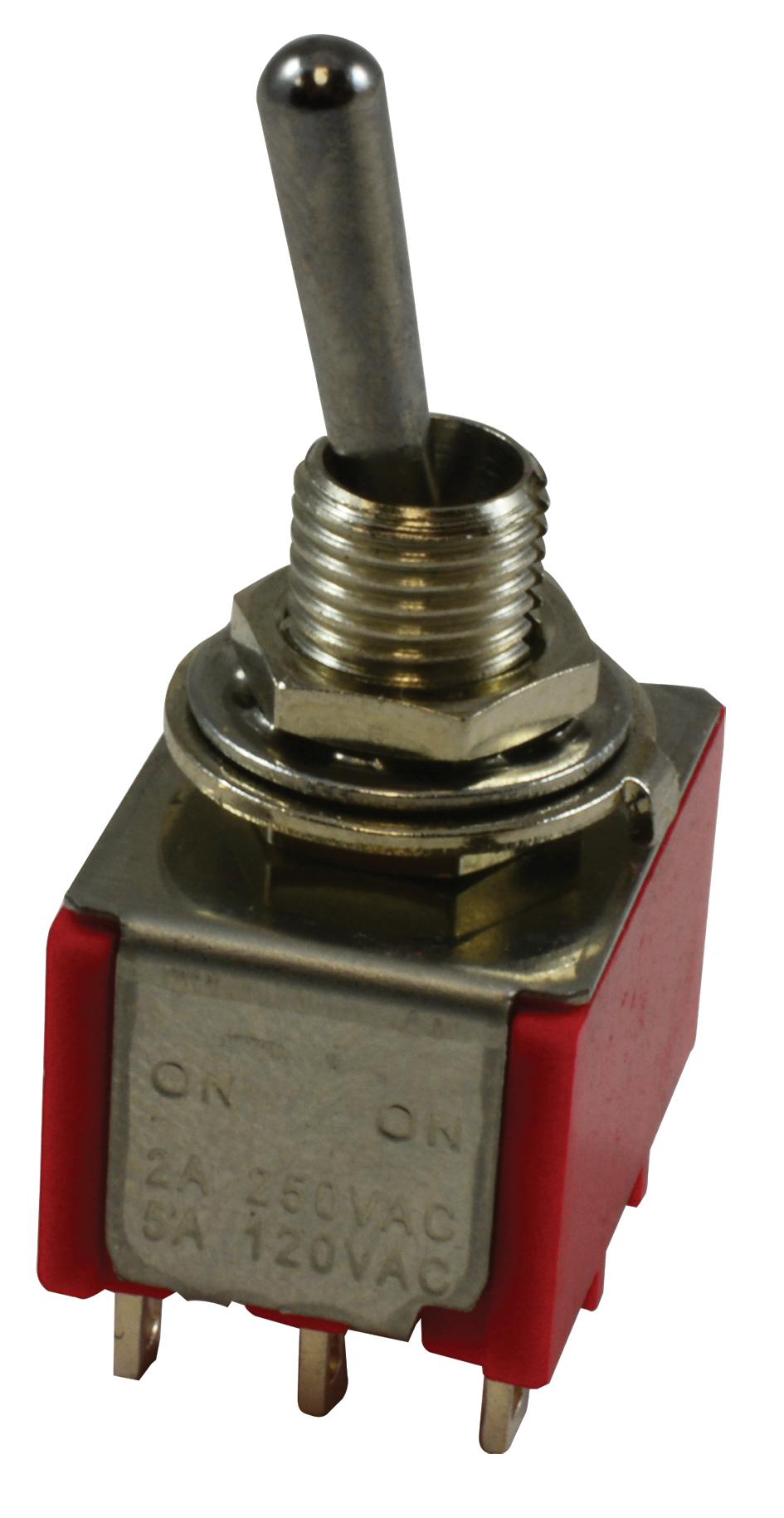

MULTICOMP PRO 1M31T1B1M1QE SPDT Toggle Switch
The MULTICOMP PRO 1M31T1B1M1QE is a miniature SPDT toggle switch designed for use in diverse industrial and commercial applications. Constructed with high-quality materials like diallyl phthalate (DAP) for the case, brass for the actuator and bushings, and stainless steel for the housing, this switch provides excellent durability and reliability. It boasts a mechanical life of 40,000 cycles and a low contact resistance of 10mΩ, ensuring efficient and consistent operation. The switch is suitable for applications requiring a compact and dependable switching solution, such as control panels, instrumentation, and automation systems.
MULTICOMP PRO 1M31T1B1M1QE SPDT Toggle Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
Buy the 1M31T1B1M1QE MULTICOMP PRO SPDT Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1M31T1B1M1QE SPDT Toggle Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1M31T1B1M1QE?
You can click on the BUY or RFQ button to purchase 1M31T1B1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1M31T1B1M1QE?
You can download the 1M31T1B1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1M31T1B1M1QE?
MULTICOMP PRO
