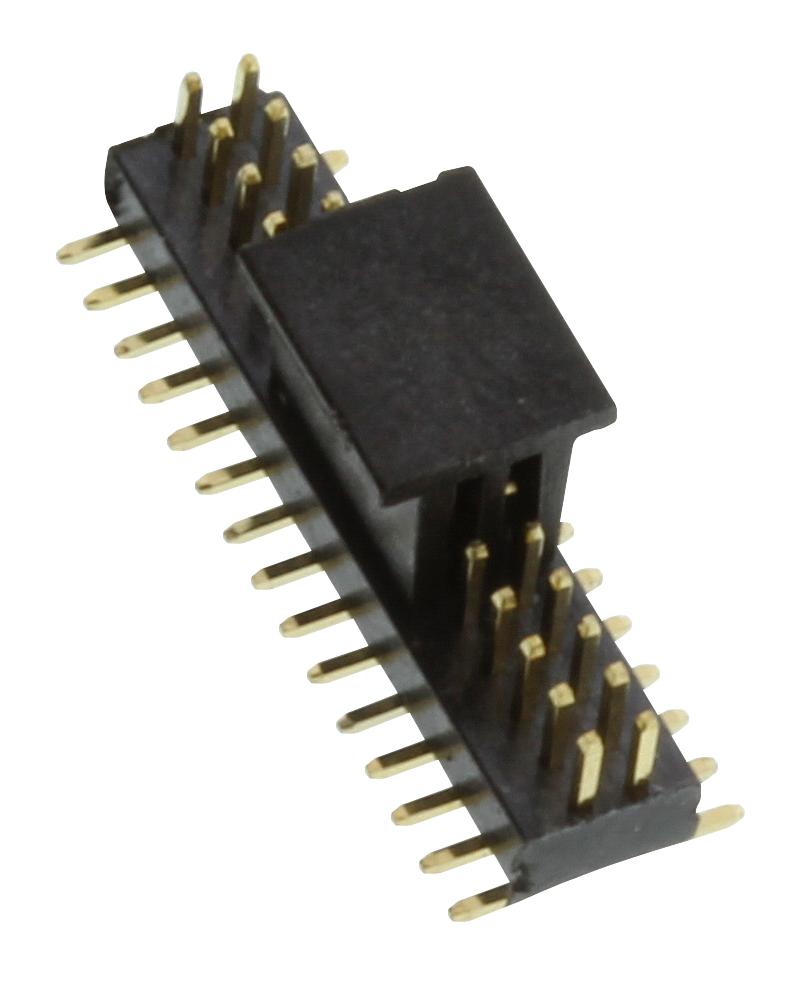

MULTICOMP-PRO MCHVS1D30G Vertical SMD Pin Header
This vertical, SMD pin header with cap features a 2-row multicomp design suitable for industrial applications requiring secure and reliable connections. Rated for 1A AC/DC current and 50V voltage, it has gold-plated copper contacts for excellent conductivity. Constructed with high-temp LCP plastic, it withstands temperatures from -25°C to +105°C. The header offers durable insulation and resistance ratings of 20mΩ contact resistance and 1000MΩ insulation resistance, ensuring optimal performance in complex electronic assemblies. Its compact dimensions make it ideal for high-density PCB layouts and sensitive electronic modules.
MULTICOMP-PRO MCHVS1D30G Vertical SMD Pin Header Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Material: High-temp plastic (LCP UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Dimensions: 1mm pitch, height 3.7mm, varies from 6 to 40 positions
- RoHS compliant
Buy the Multicomp MC-HVS1-D30-G U+2013 Reliable Vertical SMD Pin Header for Industrial Applications
Order the Multicomp Vertical SMD Pin Header with Cap today for high-density PCB connections. With its 1mm pitch, dual-row design, and gold-plated contacts, this connector ensures secure and corrosion-resistant performance. Suitable for industrial and electronic applications, it withstands temperatures from -25°C to +105°C and offers high insulation and contact resistance ratings. Enhance your project with a reliable, RoHS-compliant component that guarantees durability, easy installation, and optimal electrical performance for complex electronic assemblies.
Buy Multicomp MC-HVS1-D30-G now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHVS1D30G?
You can click on the BUY or RFQ button to purchase MCHVS1D30G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVS1D30G?
You can download the MCHVS1D30G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHVS1D30G?
MULTICOMP-PRO
