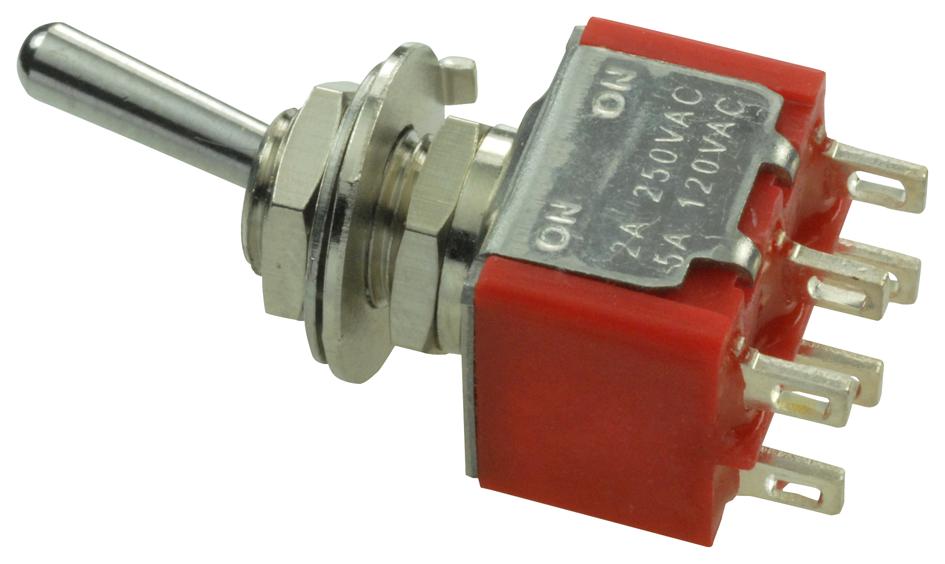

MULTICOMP PRO 1MD1T1B5M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MD1T1B5M1QE is a miniature toggle switch suitable for a wide range of applications including industrial control panels, instrumentation, and automation systems. It is designed for reliable switching performance with a mechanical life of 40,000 cycles. The switch offers various pole configurations (SP, DP, 3P, 4P) and switch functions (ON, OFF, MOM), providing flexibility in circuit design. Constructed with durable materials like Diallyl phthalate (DAP), brass, and stainless steel, it ensures long-term reliability in demanding environments. Available with various bushing and termination options to suit different mounting and wiring requirements.
MULTICOMP PRO 1MD1T1B5M1QE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
