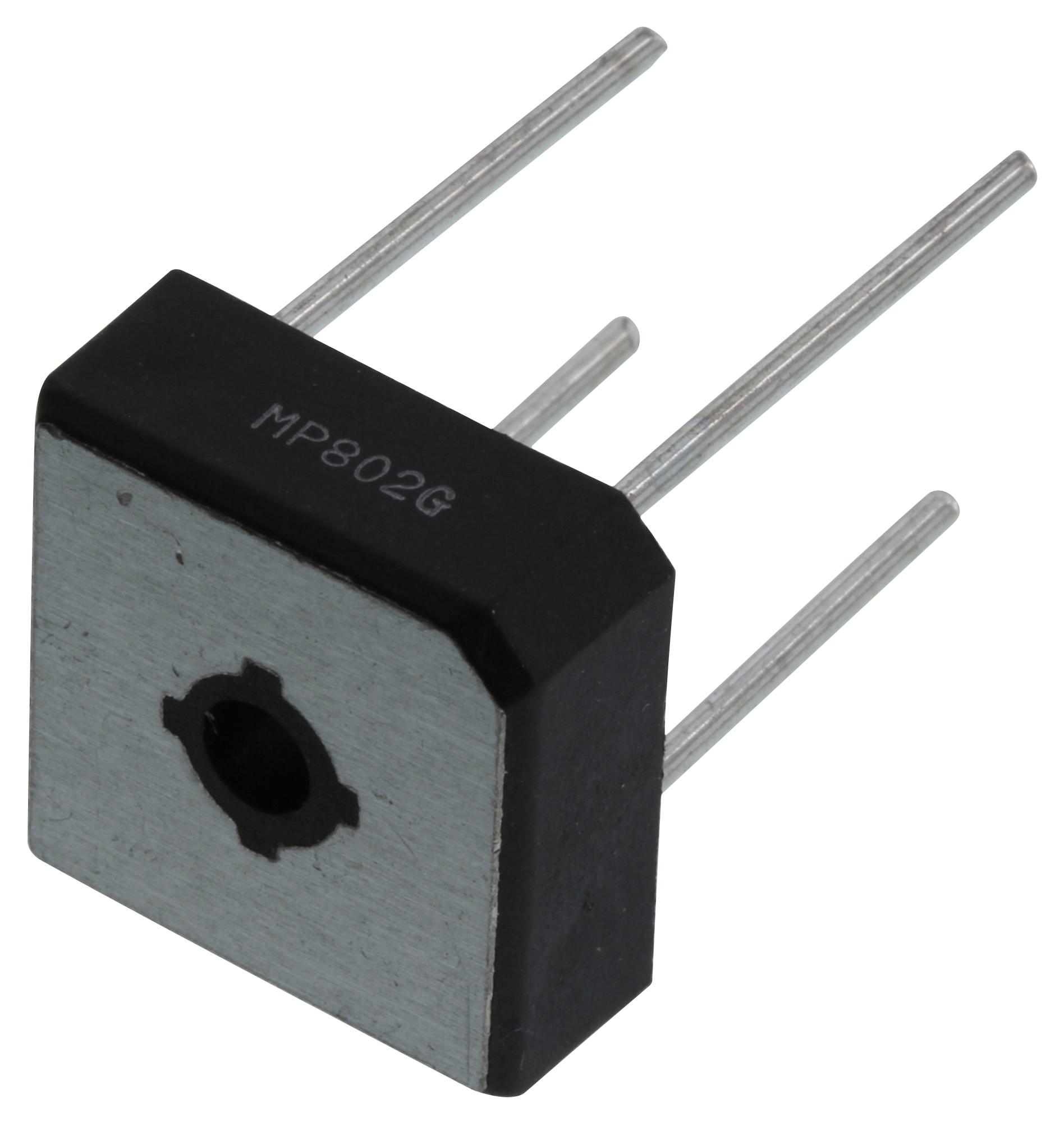

MULTICOMP PRO MP802G Bridge Rectifier
The MP802G is a high-quality glass passivated bridge rectifier designed for efficient power conversion in various electronic applications. It features surge overload capability of up to 175 amperes peak and low forward voltage drop for enhanced efficiency. Suitable for any mounting position, this rectifier operates with reverse voltages between 200V and 600V and supports a maximum forward current of 8A. Its robust copper leads are silver plated, ensuring reliable electrical contact. Ideal for use in power supplies, automation systems, and industrial electronics, this component offers durability and consistent performance in demanding environments.
MULTICOMP PRO MP802G Bridge Rectifier Specifications:
- Reverse Voltage Range: 200 to 600 Volts
- Forward Current: 8 Amperes
- Surge Overload Rating: Peak 175 Amperes
- Maximum Recurrent Peak Reverse Voltage: 200V (MP802G), 600V (MP806G)
- Max RMS Bridge Input Voltage: 140V (MP802G), 420V (MP806G)
- Max Forward Voltage Drop: 4V at 3A, 8A load
- Maximum Reverse Current: 10 pA at 25°C
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: Length 0.77 inches (19.6mm), Width 0.52 inches (13.2mm), Height 0.48 inches (12.2mm)
- Lead Material: Silver-plated copper
- Mounting Position: Any
- Isolation: Glass passivated
- Peak Forward Surge Current: 175A for 8.3ms
- Circuit Type: Single phase, half wave, 60Hz
Buy the Farnell MP802G – Reliable Bridge Rectifier for Industrial Applications
Purchase the Farnell MP802G bridge rectifier online to enjoy reliable, high-performance power conversion in your industrial projects. With an 8A current capacity, surge overload up to 175A, and reverse voltages up to 600V, this component ensures efficiency and durability. Its glass passivated design and silver-plated copper leads provide excellent electrical contact and longevity. Whether for power supplies, automation, or electronics manufacturing, buy online now and ensure your systems operate smoothly with this dependable rectifier designed for demanding environments.
Get Farnell MP802G today—built for precision and long-lasting durability in power conversion solutions.
