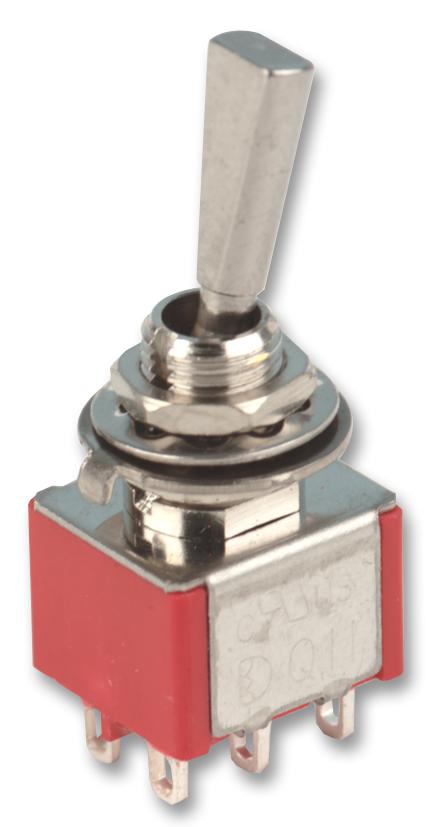

MULTICOMP PRO 1MD1T6B11M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MD1T6B11M1QE is a miniature toggle switch suitable for a wide range of applications including industrial control panels, instrumentation, and automation systems. It is designed for reliable performance and long life, featuring a mechanical life of 40,000 make-and-break cycles. The switch offers various pole configurations (SP, DP, 3P, 4P) and switch functions (ON, OFF, MOM), allowing for flexible circuit control. Constructed with durable materials like Diallyl phthalate (DAP), brass, and stainless steel, the 1MD1T6B11M1QE ensures consistent operation in demanding environments. Available termination options include solder lug, PC thru-hole, quick connect, and wire wrap, providing versatility in integration.
MULTICOMP PRO 1MD1T6B11M1QE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MD1T6B11M1QE MULTICOMP PRO Miniature Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MD1T6B11M1QE Miniature Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MD1T6B11M1QE?
You can click on the BUY or RFQ button to purchase 1MD1T6B11M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MD1T6B11M1QE?
You can download the 1MD1T6B11M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MD1T6B11M1QE?
MULTICOMP PRO
