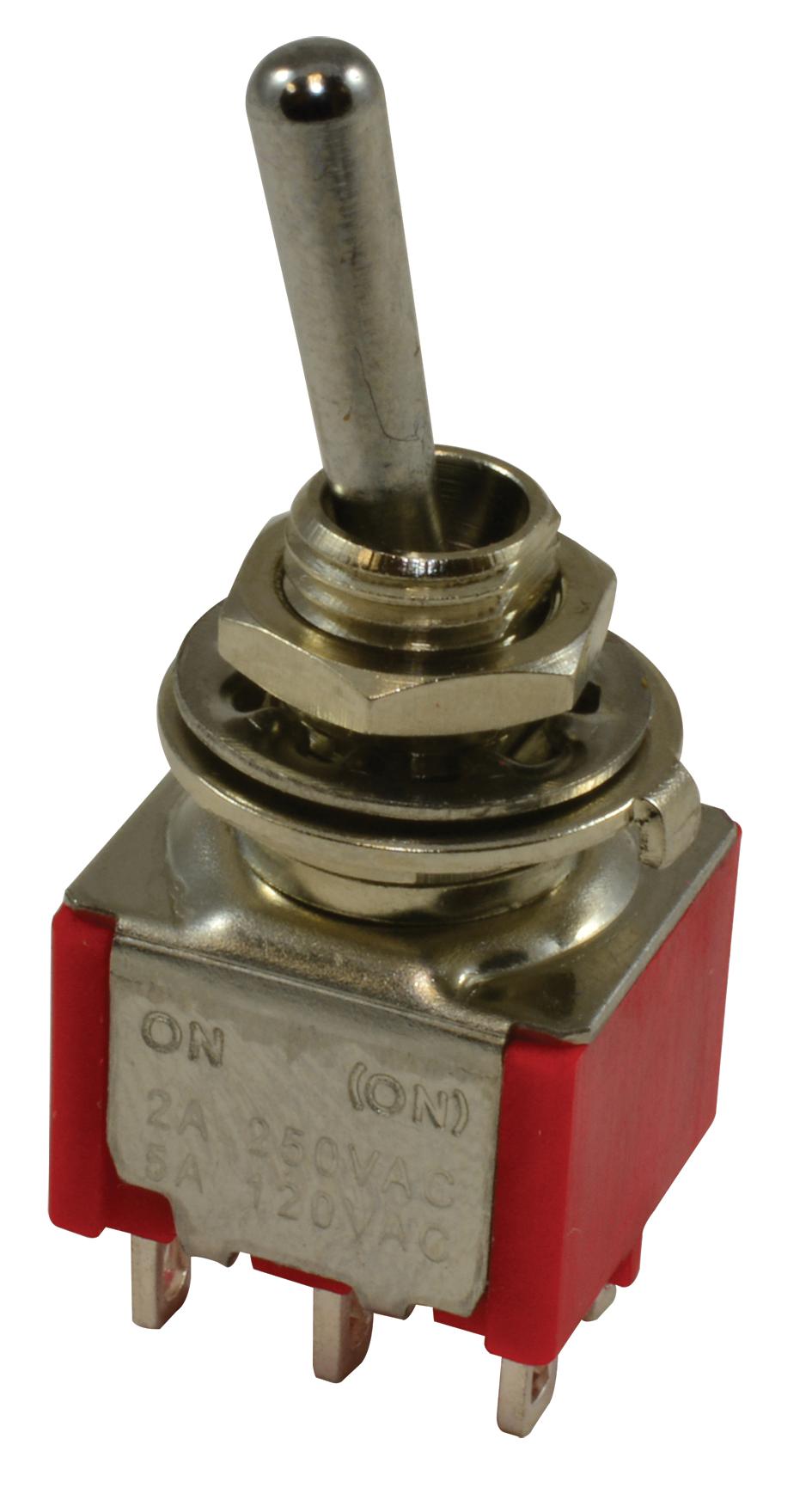

MULTICOMP PRO 1MD2T1B5M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MD2T1B5M1QE is a miniature toggle switch suitable for a wide range of applications including industrial control panels, instrumentation, and automation systems. Available in various pole configurations (SP, DP, 3P, 4P) and switch functions (ON, OFF, MOM), this switch provides flexibility in circuit design. The switch features a mechanical life of 40,000 cycles and a contact resistance of 10mΩ, ensuring reliable performance. It is constructed with durable materials like Diallyl phthalate (DAP), brass, and stainless steel, and is available with various actuator and bushing options to meet specific application requirements. The RoHS compliant design ensures environmental responsibility.
MULTICOMP PRO 1MD2T1B5M1QE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
