MULTICOMP-PRO MC000818 RF Coaxial Cable Assembly

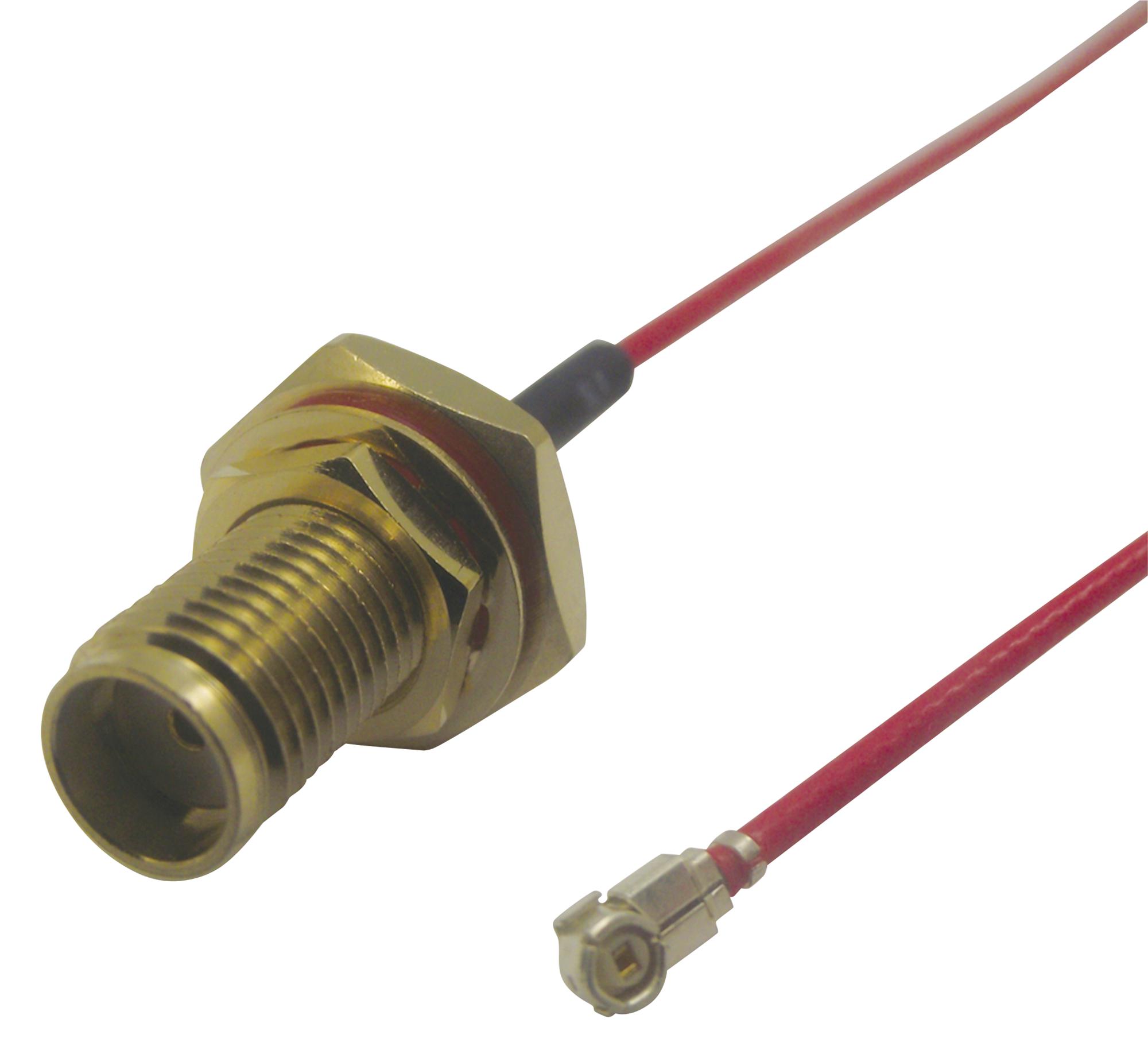

This is a 100mm red RF coaxial cable assembly designed for outdoor applications. It features an IP67 waterproof rating with an RP-SMA bulkhead connector on one end and a U.FL connector on the other. The cable uses a 1.37mm low-loss micro coaxial cable with 50 ohm impedance, suitable for frequencies up to 3 GHz. It supports a maximum working voltage of 60V, dielectric withstand voltage of 200V, and has an insulator resistance of at least 500 megaohms. The cable exhibits a maximum Voltage Standing Wave Ratio of 1.4:1 and an insertion loss of no more than -0.7dB. Operating temperature range is from -20°C to +70°C, and the sheath color is red.

View MC000818Datasheet [pdf]

Buy the Multicomp MC000818 – Reliable RF Cable for Industrial Applications

Enhance your outdoor RF setup with this high-quality 100mm red coaxial cable assembly. Featuring an IP67 waterproof rating, 50 ohm impedance, and compatible with DC to 3 GHz frequencies, it ensures reliable signal transmission in industrial environments. The cable comes with an RP-SMA bulkhead connector and a U.FL connector, supporting a maximum working voltage of 60V and dielectric withstand voltage of 200V. With excellent insulator resistance and low insertion loss, it’s perfect for outdoor communications, test equipment, and antenna applications.

Buy Multicomp MC000818 now and experience unmatched reliability and performance in outdoor RF connectivity.
