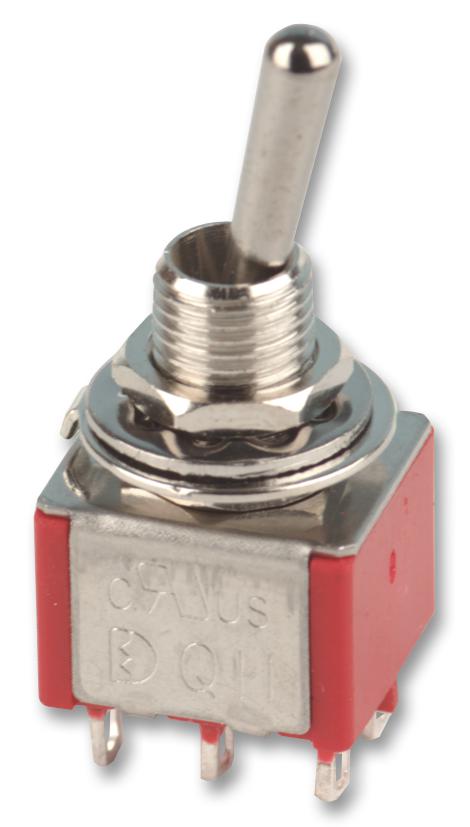

MULTICOMP PRO 1MD3T1B1M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MD3T1B1M1QE is a miniature toggle switch designed for a wide range of applications requiring reliable on/off or momentary switching. Constructed with durable materials like diallyl phthalate (DAP) for the case, brass for the actuator and housing, and silver or gold plated contacts, this switch ensures excellent electrical performance and longevity. It is suitable for use in industrial control panels, consumer electronics, and various other applications where a compact and dependable switching solution is needed. Available with different pole configurations and termination options, the 1MD3T1B1M1QE provides flexibility to meet diverse design requirements.
MULTICOMP PRO 1MD3T1B1M1QE Miniature Toggle Switch Specifications:
- mechanical_life: 40,000 make-and-break cycles
- contact_resistance: 10mΩ max. initial @ 2-4V DC 100mA
- insulation_resistance: 1,000MΩ min.
- dielectric_strength: 1,000V rms min. @ sea level
- operating_temperature: -30°C to +85°C
- case_material: Diallyl phthalate (DAP)
- actuator_material: Brass, chrome plated
- bushing_material: Brass, nickel plated
- housing_material: Stainless steel
- switch_support_material: Brass, tin plated
- contact_terminals_material: Brass, Silver or gold plated
Buy the 1MD3T1B1M1QE MULTICOMP PRO Miniature Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MD3T1B1M1QE miniature toggle switch securely online and benefit from our competitive pricing and fast shipping.
