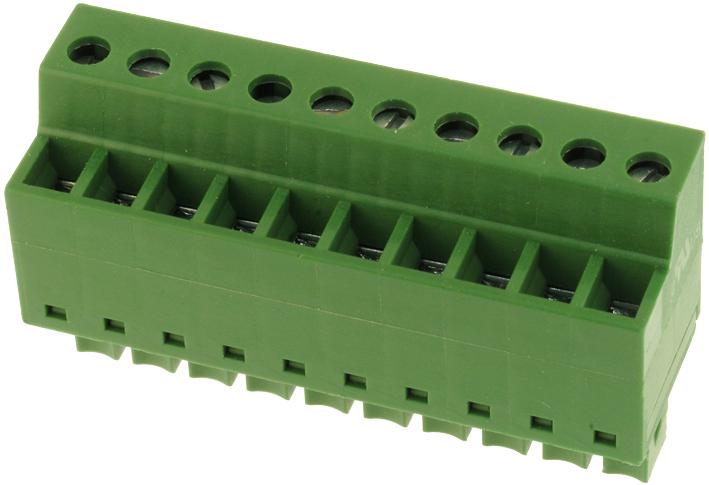

MULTICOMP PRO MC31038110 Pluggable PCB Connector
This pluggable PCB connector from Multicomp Pro offers reliable interconnection for industrial and electronics applications. Designed with a 3.81mm pitch, it features steel zinc-plated cage clamps, phosphor bronze contacts tin-plated for durability, and a PA66 housing for robust performance. Suitable for wire sizes from 16AWG to 30AWG, it supports a maximum load current of 8A and operates within -40°C to +105°C. Ideal for compact, secure, and efficient electrical connections in various control and industrial circuits.
MULTICOMP PRO MC31038110 Pluggable PCB Connector Specifications:
- Pitch: 3.81mm
- Poles: 2 to 20Poles
- Housing Material: PA66
- Cage Clamp: Steel, Zinc Plated
- Contact Material: Phosphor Bronze, Tin Plated
- Screw Thread: M2, Steel, Zinc Plated
- Wire Size: 16AWG to 30AWG
- Tightening Torque: Max 22.5 Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 8A
- Maximum Load Current: 8A
- Insulating Material: PA
- Nominal Voltage: 300V
- Dimensions: Not specified externally, compatible with 3.81mm pitch
Buy the Multicomp Pro MC31038110 – Reliable PCB Connector for Industrial Applications
Enhance your electronic assemblies with the reliable pluggable PCB connector from Multicomp Pro. Featuring a 3.81mm pitch, tubular zinc-plated cage clamps, and durable phosphor bronze contacts, it supports wire sizes from 16 to 30AWG. Operates efficiently within -40°C to +105°C and handles currents up to 8A, making it suitable for industrial control panels, automation systems, and electronic projects. Easy to install and maintain, this connector ensures secure, high-quality electrical connections for professional applications.
Order your Multicomp Pro MC31038110 pluggable PCB connector today and secure durable, reliable connections suitable for industrial and electronic projects.
