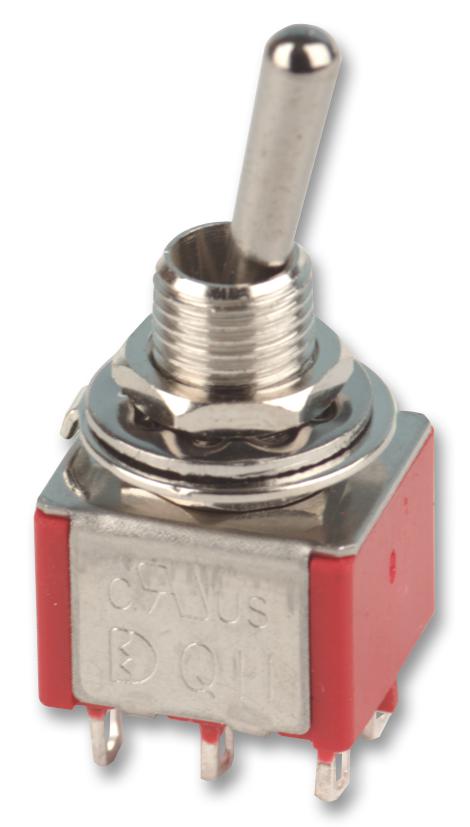

MULTICOMP PRO 1MD3T1B1M1RE Miniature Toggle Switch
The MULTICOMP PRO 1MD3T1B1M1RE is a miniature toggle switch suitable for a wide range of industrial and commercial applications. It features a robust construction with a Diallyl phthalate (DAP) case, brass actuator, and stainless steel housing, ensuring durability and long-term reliability. The switch offers a mechanical life of 40,000 make-and-break cycles, a contact resistance of 10mΩ, and an insulation resistance of 1,000MΩ. Its dielectric strength is 1,000V rms, and it operates effectively within a temperature range of -30°C to +85°C. Available in various configurations, including SPDT, DPDT, 3PDT, and 4PDT, this switch provides flexibility for diverse circuit designs. Termination options include solder lug, PC through-hole, quick connect, and wire wrap, catering to different assembly requirements.
MULTICOMP PRO 1MD3T1B1M1RE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MD3T1B1M1RE MULTICOMP PRO Miniature Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MD3T1B1M1RE Miniature Toggle Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MD3T1B1M1RE?
You can click on the BUY or RFQ button to purchase 1MD3T1B1M1RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MD3T1B1M1RE?
You can download the 1MD3T1B1M1RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MD3T1B1M1RE?
MULTICOMP PRO
