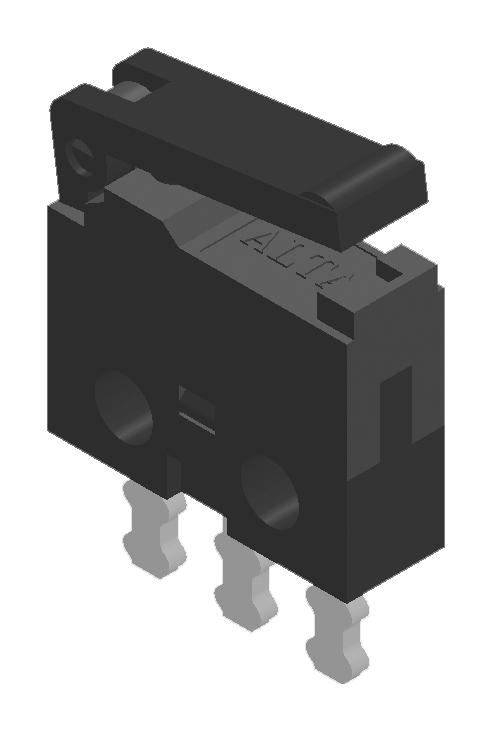

MULTICOMP PRO MP000798 Hinge Lever Microswitch
This through-hole snap action microswitch features a hinge lever design with a 0.5A, 30V DC contact rating, suitable for small electronic device applications like mapping equipment and portable electronics. It provides reliable mechanical operation with 100,000 cycles durability and electrical durability of 50,000 cycles. The switch supports multiple configurations including SPDT, SPST-NC, and SPST-NO, with operating forces of 0.5N and release forces of 0.03N. Its compact dimensions and RoHS compliance make it ideal for precise, space-constrained electronic assemblies.
MULTICOMP PRO MP000798 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles (60 operations/min)
- Electrical Durability: 50,000 cycles (20 operations/min)
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min (at 500V DC)
- Dielectric Strength: 250V AC (1 min) between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max
- Release Force: 0.03N Min
- Over Travel: 0.3mm Min
- Movement Differential: 0.7mm Max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max
- Pretravel: 1.8mm Max
- Terminal Type: Uneven Pitch
- Dimensions: Compact, suitable for PCB mounting
Buy the Buy Multicomp Microswitch Part Number MP000798 Online
Purchase the multicomp hinge lever microswitch online for dependable operation in small electronics and automation systems. Featuring a 0.5A, 30V DC contact rating, it is suitable for mapping devices, portable electronics, and other space-constrained applications. Its compact size, multiple configurations, and RoHS compliance ensure versatile integration across various electronic assemblies. With a lifespan of 100,000 mechanical cycles and 50,000 electrical cycles, this switch guarantees long-lasting performance. Order now for fast delivery and seamless integration into your project.
Buy multicomp MP000798 now and experience reliable switching performance in your electronic projects.
