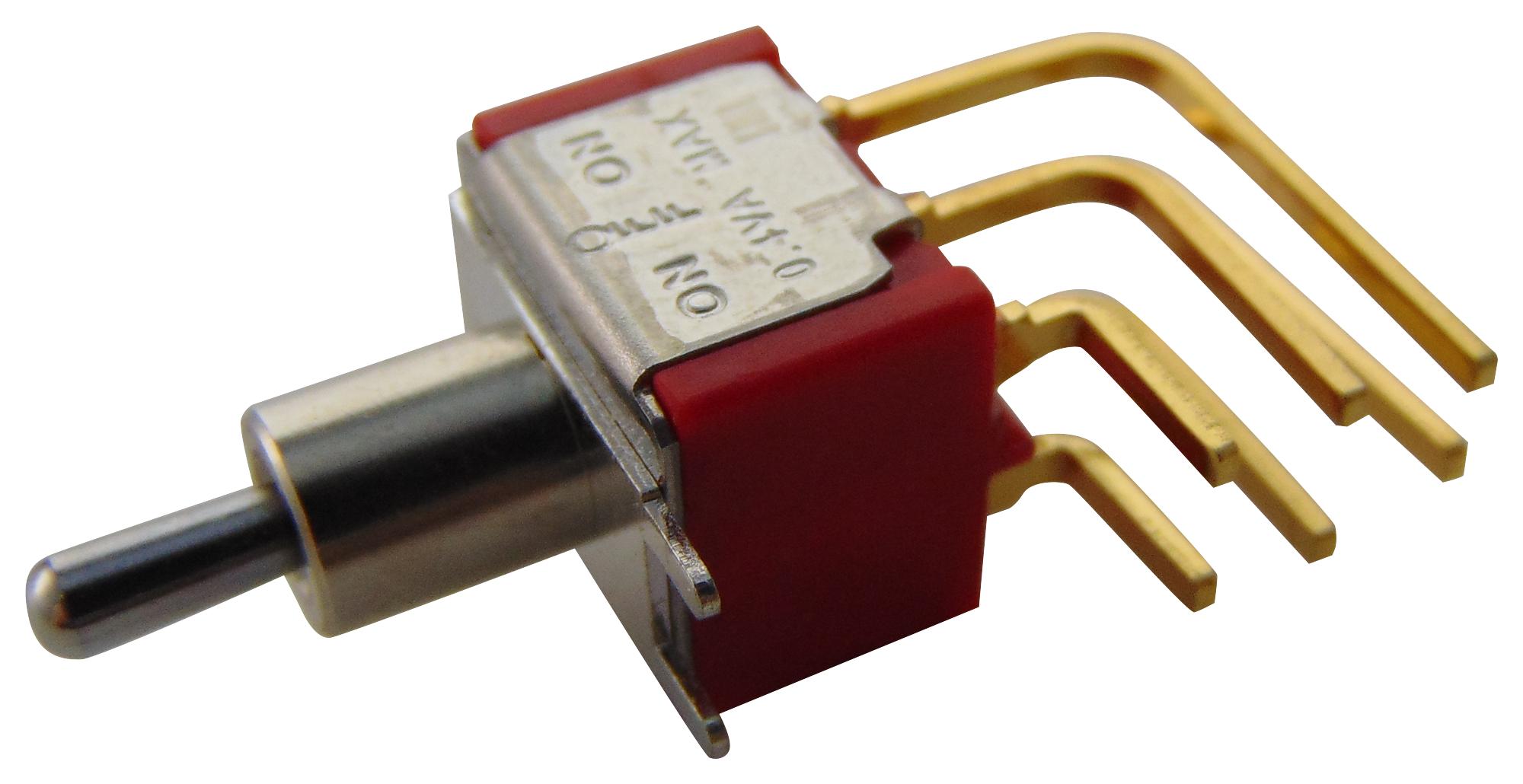

MULTICOMP PRO 1MD3T2B4M7RE 3-Position Toggle Switch
The MULTICOMP PRO 1MD3T2B4M7RE is a miniature toggle switch designed for a variety of industrial applications. It boasts a mechanical life of 40,000 make-and-break cycles, ensuring long-term reliability. The switch features a low contact resistance of 10mΩ, minimizing signal loss and ensuring efficient operation. Constructed with durable materials like diallyl phthalate (DAP) for the case and brass for the terminals, this switch is built to withstand demanding environments. It is suitable for applications requiring precise and dependable switching functionality.
MULTICOMP PRO 1MD3T2B4M7RE 3-Position Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MD3T2B4M7RE MULTICOMP PRO 3-Position Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MD3T2B4M7RE toggle switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MD3T2B4M7RE?
You can click on the BUY or RFQ button to purchase 1MD3T2B4M7RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MD3T2B4M7RE?
You can download the 1MD3T2B4M7RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MD3T2B4M7RE?
MULTICOMP PRO
