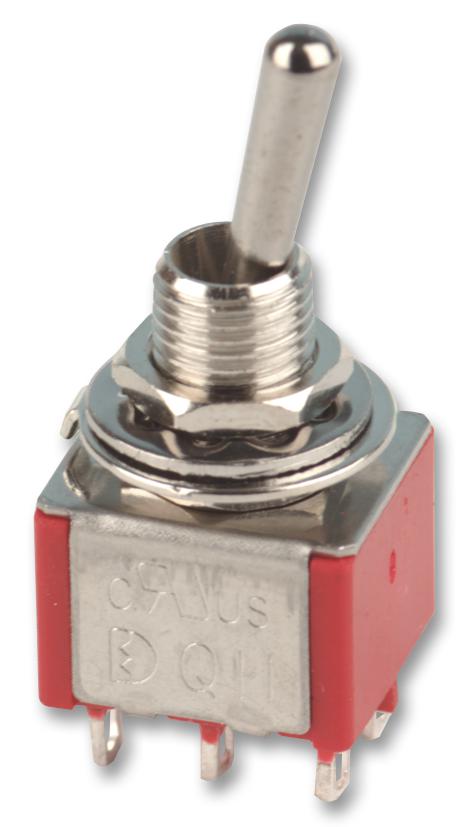

MULTICOMP PRO 1MD4T1B1M1QE Miniature SPDT Switch
The MULTICOMP PRO 1MD4T1B1M1QE is a miniature SPDT toggle switch offering reliable switching functionality in a compact form factor. Constructed with durable materials like diallyl phthalate (DAP) for the case and brass for the actuator and bushings, this switch is designed for longevity and performance. It finds application in diverse industrial and consumer electronics, providing a robust solution for switching circuits and controlling power flow. The switch's mechanical life of 40,000 cycles ensures consistent operation over extended periods, while its low contact resistance minimizes signal loss and maximizes efficiency.
MULTICOMP PRO 1MD4T1B1M1QE Miniature SPDT Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
